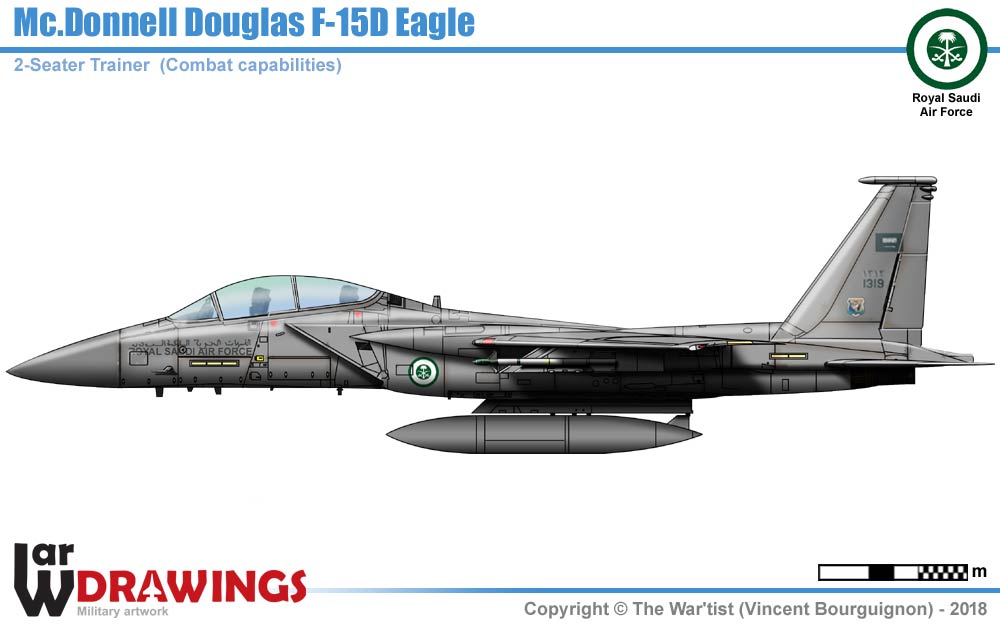

Mc.Donnell Douglas F-15D Eagle

Modern Drawings/Air/Arabia Saudi/Fighters/F-15-Eagle/F-15D.htm | Update: -

13 Sqn, RSAF

Specifications

General

Type: 2-Seater Trainer
Crew: 2
First flight: 27 July 1972
Introduction: 9 January 1976
Number built: 170 F-15C/D/SA in operation as of November 2017

Powerplant

2 × Pratt & Whitney F100-100 or -220 afterburning turbofans
Dry thrust: 77.62 kN each
Thrust with afterburner: 111.2 kN (for -220 kN) each

Dimensions/Masses

Length: 19.43 m | Wingspan: 13.05 m | Height: 5.63 m
Wing Area: 56.5 m² | Empty weight: 12700 kg
Loaded weight: 20200 kg | Max. takeoff weight: 30845 kg

Performances

Maximum speed: Mach 2.5+ (2665+ km/h) at High altitude
Combat radius: 1967 km | Ferry range: 5550 km
Service ceiling: 20000 m

Armament

Inside: 1× 20 mm (0.787 in) M61 Vulcan 6-barreled gatling cannon, 940 rounds
Hardpoints: 11 total with a capacity of 7300 kg external fuel and ordnance
