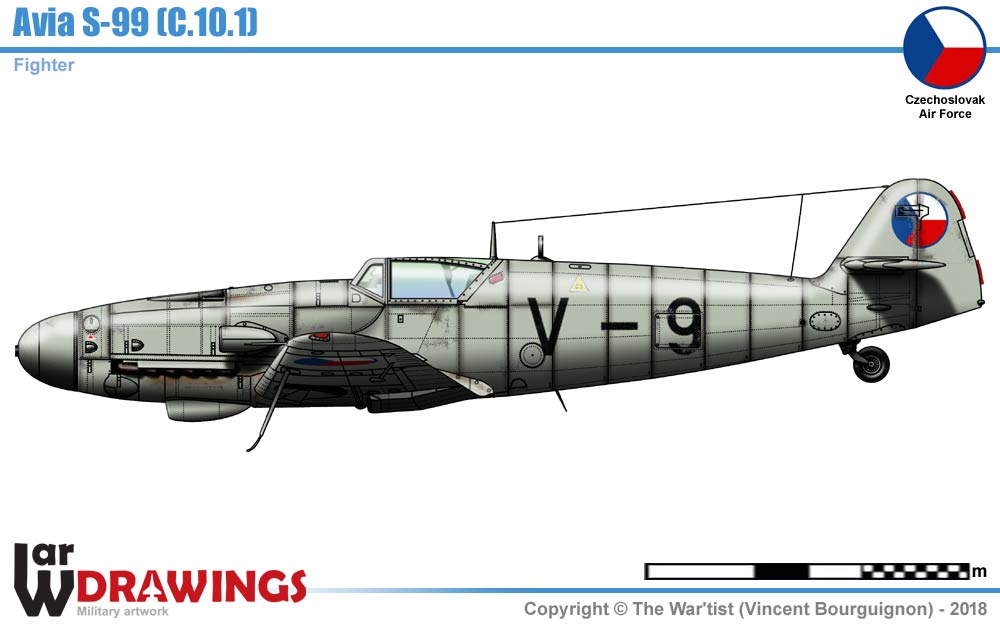

Avia S.99 (C.10.1)

Modern Drawings/Air/Czechoslovakia/Fighters/S-99-199/S-99_C-10-1.htm | Update: 02-09-2018

Reconstructed at Diana factory Bf.109G-10/U14 W.Nr.613156. Circa 1946.

Specifications

General

Type: Fighter
Crew: 1
First flight: 1946
Quantity: 21 aircraft completed

Powerplant

1 × Daimler-Benz DB 605 AM | 1800 hp

Dimensions/Masses

Length: 8.94 m | Wingspan: 9.92 m | Height: 2.59 m
Wing area: 16.2 m² | Empty weight: 2650 kg
Max. takeoff weight: 3740 kg

Performances

Maximum speed: : 650 km/h
Service ceiling: 12300 m
Range: 850 km

Armament

Inside: 1× MG 151/20, 2× 13 mm MG 131
Outside: 1× 250 kg or 4× 70 kg bombs
