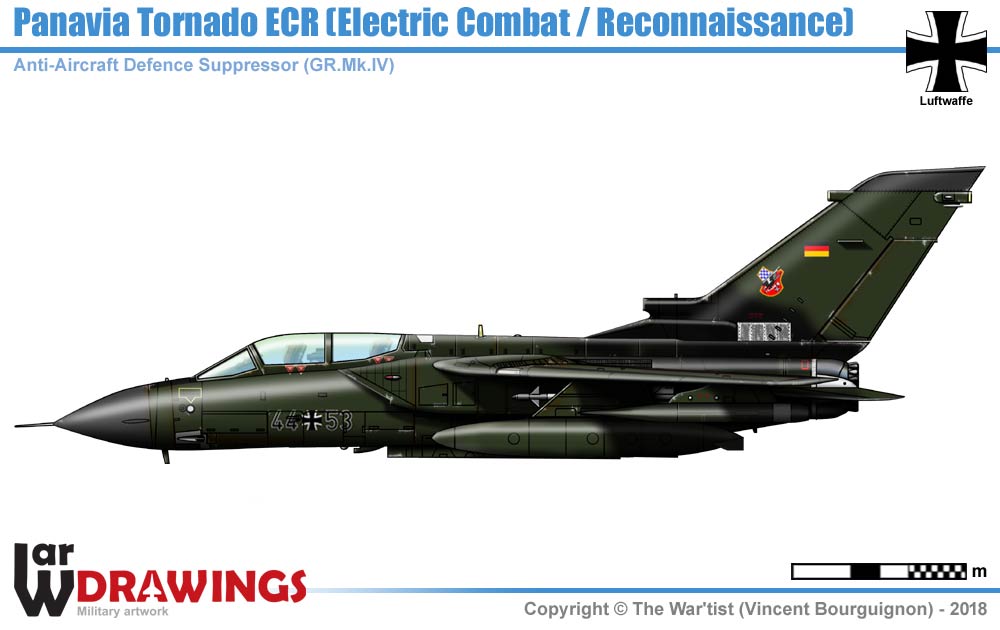

Panavia Tornado ECR

Modern Drawings/Air/Germany/Fighters/Tornado/Tornado-ECR.htm | Update: -

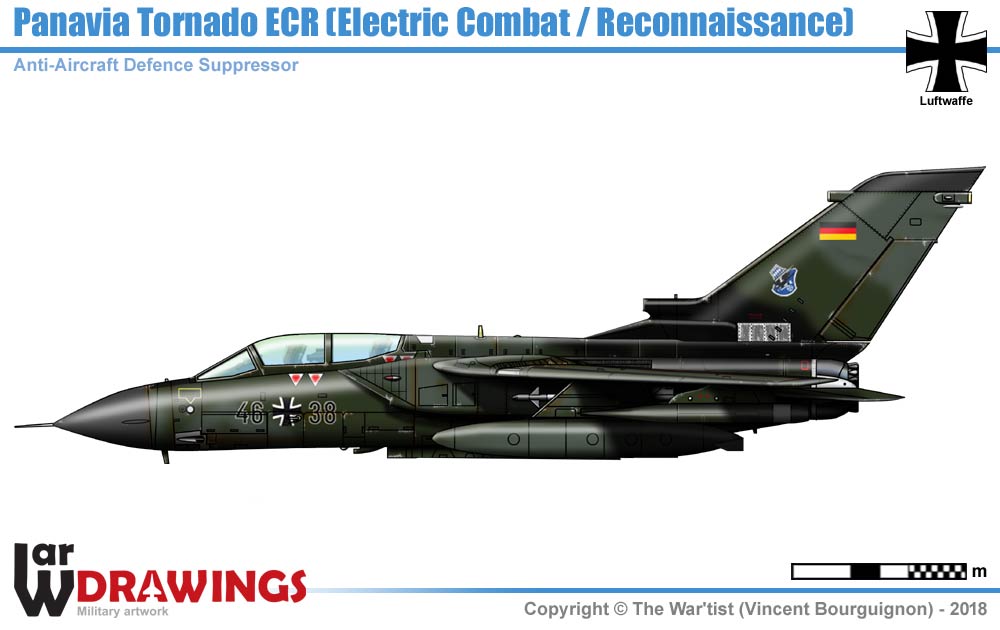

JaboG 32 - Circa 1991.

JaboG 32

Specifications

General

Type: Ground Attack Aircraft
Crew: 2
First flight: 14 August 1974
Introduction: 1979
Number built: 324 IDS and 35 ECR Tornados delivered (including 112 IDS to Marineflieger) for Germany

Powerplant

2 × Turbo-Union RB199-34R Mk 104 afterburning turbofans
Dry thrust: 43.8 kN each
Thrust with afterburner: 76.8 kN each

Dimensions/Masses

Length: 16.72 m | Wingspan: 13.91 m at 25° wing sweep,
8.60 m at 67° wing sweep | Height: 5.95 m
Wing area: 26.6 m² | Empty weight: 13890 kg
Max takeoff weight: 28000 kg

Performances

Maximum speed: Mach 2.2 (2,400 km/h)
Combat radius: 1390 km | Ferry range: 3890 km
Service ceiling: 15240 m

Armament

Inside: 1 × 27 mm (1.06 in) Mauser BK-27 revolver gun
Outside: 4× light duty + 3× heavy duty under-fuselage and 4× swivelling under-wing pylon stations with a capacity of 9000 kg of payload, the two inner wing pylons have shoulder launch rails for 2× Short-Range AAM (SRAAM) each and provisions to carry combinations.
