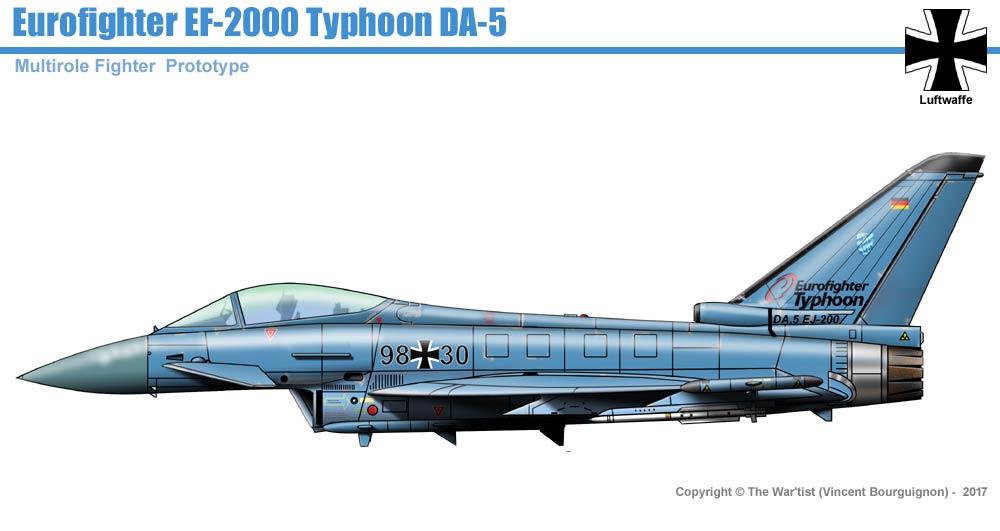

Single-seater, for weapon testing, flew on 24 February 1997. In May 2007 this aircraft was the first Typhoon to fly equipped with the new CAPTOR Active Electronically Scanned Array Radar (CAESAR).





Specifications
General

Type: Multirole Fighter
Crew: 1
First flight: 27 March 1994
Introduction: 4 August 2003
Number built: 143 ordered, of which 125 have been delivered by November 2016
Powerplant
2 × Eurojet EJ200 afterburning turbofan
Dry thrust: 60 kNeach
Thrust with afterburner: 89 kN each
Dimensions/Masses
Length: 15.96 m | Wingspan: 10.95 m | Height: 5.28 m
Wing area: 51.2 m²
Empty weight: 11150 kg | Max takeoff weight: 23500 kg
Performances
Maximum speed: Mach 2 (2475 km/h)
Combat radius: 1389 km | Ferry range: 2900 km
Service ceiling: 19812 m
Armament

Inside: 1 × 27 mm Mauser BK-27 Revolver gun (150 rounds)
Outside: Total of 13: 8 × under-wing; and 5 × under-fuselage pylon stations; holding up to 7500 kg of payload
