Republic F-47N Thunderbolt

Modern Drawings/Air/Guatemala/Fighters/Others/F-47N_Thunderbolt.htm | Update: -

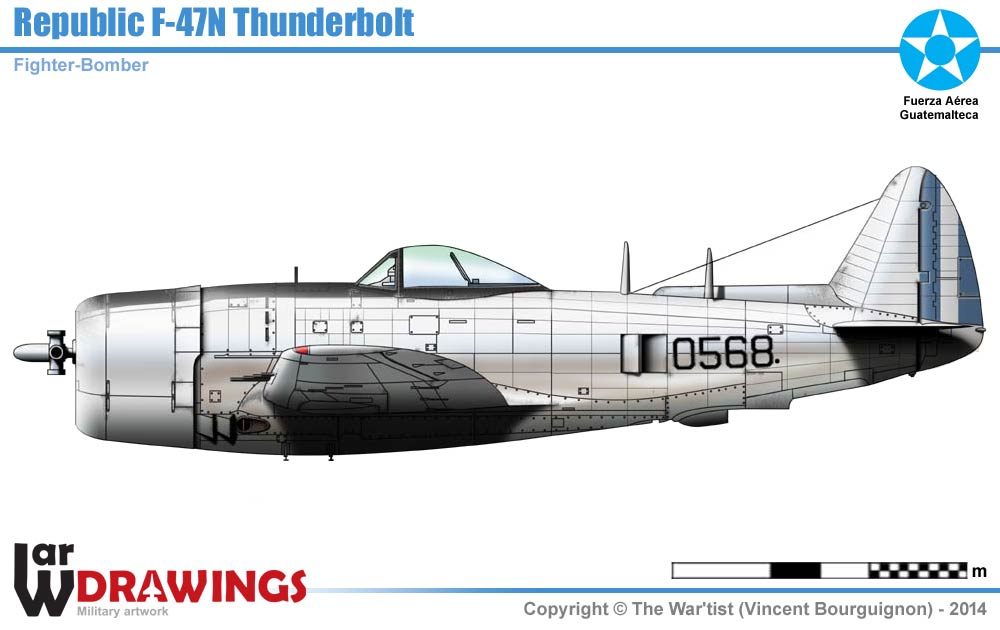

Fuerza Aerea Guatemalteca (FAG) - La Aurora, Guatemala City, 1954.

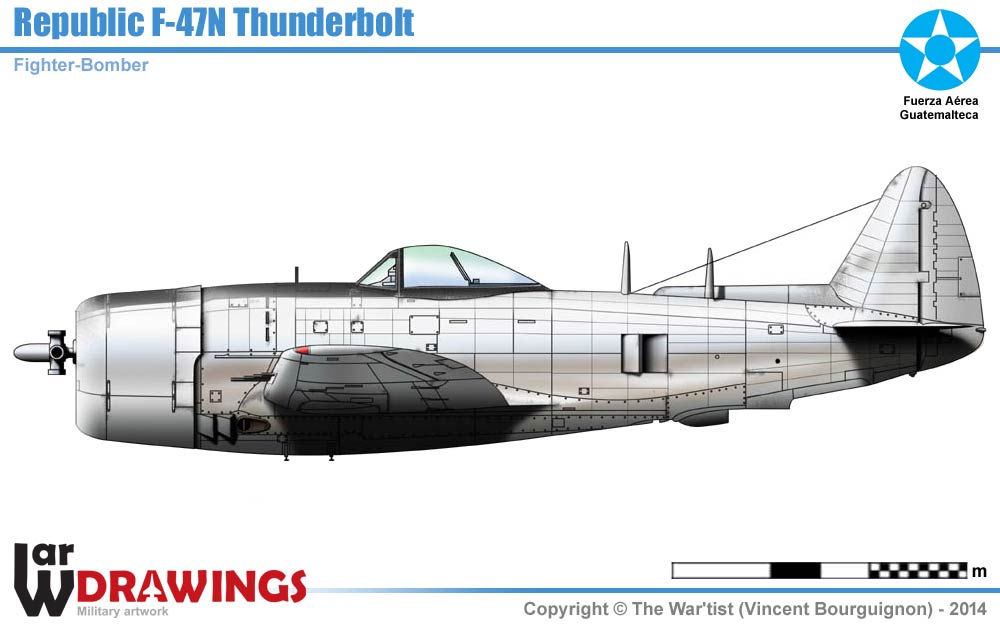

LAF (Liberation Air Force) - All traces of their previous owners - including the former USAF serial on the fin - were removed.

Specifications (F-47N)

General

Type: Fighter-Bomber
Crew: 1
First flight: September 1944
Number built: ?

Powerplant

1 × Pratt & Whitney R-2800-77 radial | 2100 hp | Pistons

Dimensions/Masses

Length: 11.00 m | Wingspan: 12.9 m | Height: 4.40 m
Wing area: 27.87 m² | Empty weight: 4988 kg
Loaded weight: ? kg | Max takeoff weight: 9387 kg

Performances

Maximum speed: 752 km/h | Ferry range: 2900 km
Service ceiling: 13106 m

Armament

Inside: 8 × .50 in (12.7 mm) M2 Browning MG (3400 rounds)
Outside: up to 1134 kg of bombs &
10 × 5 in (127 mm) unguided rockets
