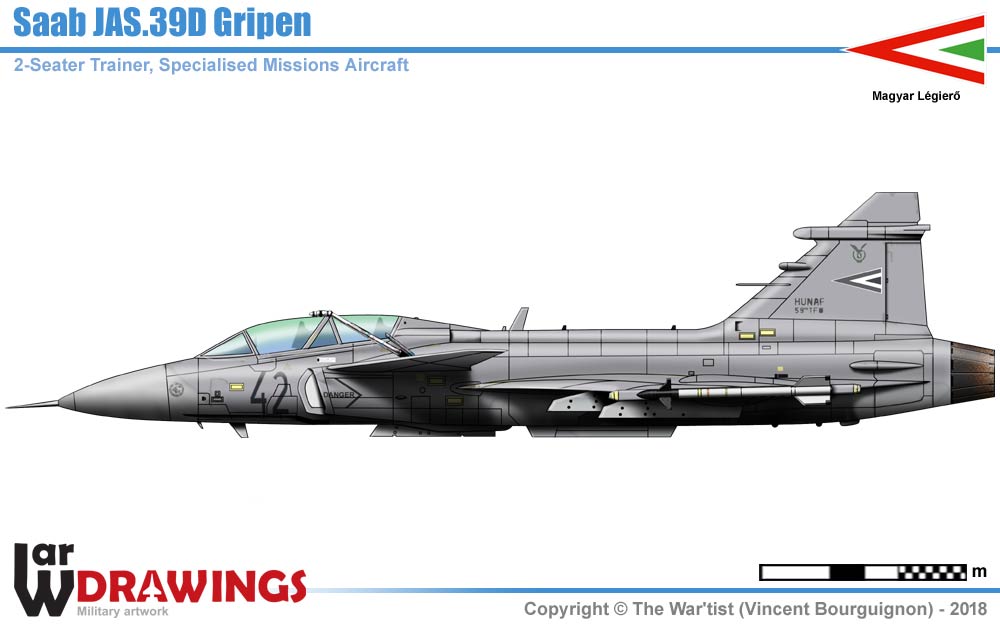

Modern Drawings/Air/Hungary/Fighters/JAS-39-Gripen/Saab-JAS39D-Gripen.htm | Update: -





No additional information



Specifications
General

Type: Trainer
Crew: 2
First flight: 9 December 1988
Introduction: 1 November 1997
Number built: 2 JAS-39Ds
Powerplant
1 × Volvo Aero RM12 afterburning turbofan
Dry thrust: 54 kN each
Thrust with afterburner: 80.5 kN each
Dimensions/Masses
Length: 14.01 m | Wingspan: 8.4 m | Height: 4.5 m
Wing area: 30.0 m²
Empty weight: 6800 kg | Max takeoff weight: 14000 kg
Performances
Maximum speed: Mach 2 (2204 km/h)
Combat radius: 800 km | Ferry range: 3200 km with drop tanks
Service ceiling: 15240 m
Armament

Inside: 1 × 27 mm Mauser BK-27 Revolver gun (120 rounds)
Outside: 3600 kg load on 6 hardpoints and 2 wingtip missile rails
