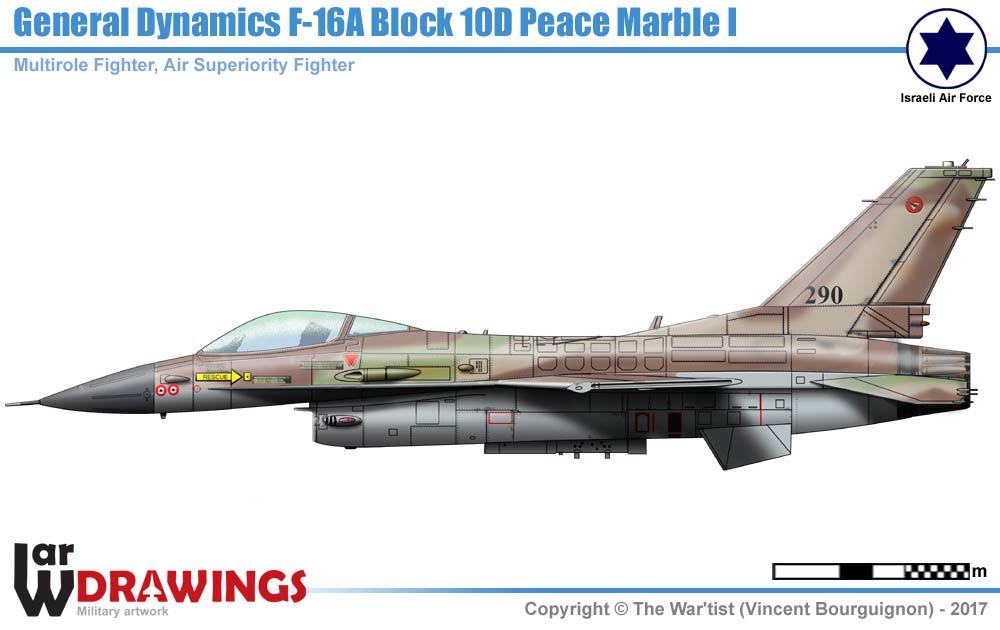

253 tajeset "Negev", IDF/AF - On January 17th, 1995 collided with F-16A near Palmachim.



Specifications F-16
General

Type: Multirole fighter, Air superiority Fighter
Crew: 1
First flight: 7 December 1976
Introduction: 1978
Number built: 243 for Israël
Powerplant
1 × F110-GE-100 afterburning turbofan
Dry thrust: 76.3 kN
Thrust with afterburner: 127 kN
Dimensions/Masses
Length: 15.06 m | Wingspan: 9.96 m | Height: 4.88 m
Wing area: 27.87 m2
Empty weight: 8570 kg | Loaded weight: 12000 kg |
Max takeoff weight: 19200 kg
Performances
Maximum speed: 2120 km/h (Mach 2)
Combat radius: 550 km | Ferry range: 4220 km with drop tanks
Service ceiling: 15240 m
Armament

Inside: 1 × 20 mm (0.787 in) M61A1 Vulcan 6-barrel Gatling (511 rounds)
Outside: 2 × wing-tip Air-to-air missile launch rails, 6 × under-wing, and 3 × under-fuselage pylon (2 of 3 for sensors) stations with a capacity of Up to 7700 kg of stores
