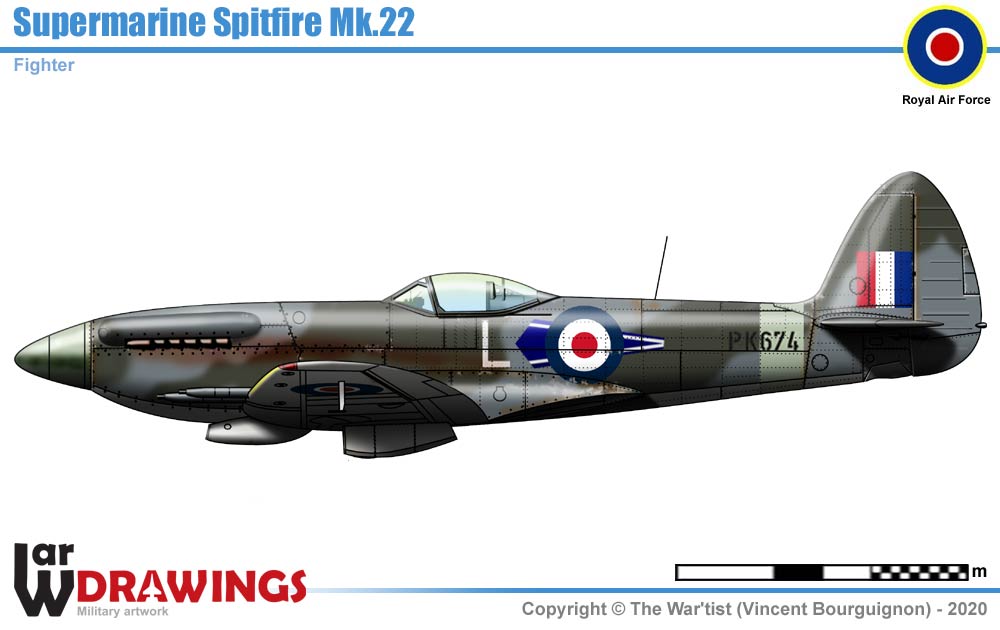

73 Sqn, RAF - Takali, Malta, 1948.





Specifications

Type: Fighter
Crew: 1

1 × Rolls-Royce Merlin 65 | 2050 hp | Pistons
Dimensions/Masses
Length: 10.04 m | Width: 11.26 m | Height: 3.86 m
Weight: 3247 kg | Max. Combat Weight: 5121 kg
Performances
Max. Speed: 731 km/h | Ceiling: 13563 m |
Range:
740, 1368 km (ferry range)
Armament

MG: 4 × 20 mm Hispano Mk II Gun
Bombs: 1 x 500 kg or 2 x 250 kg bomb
