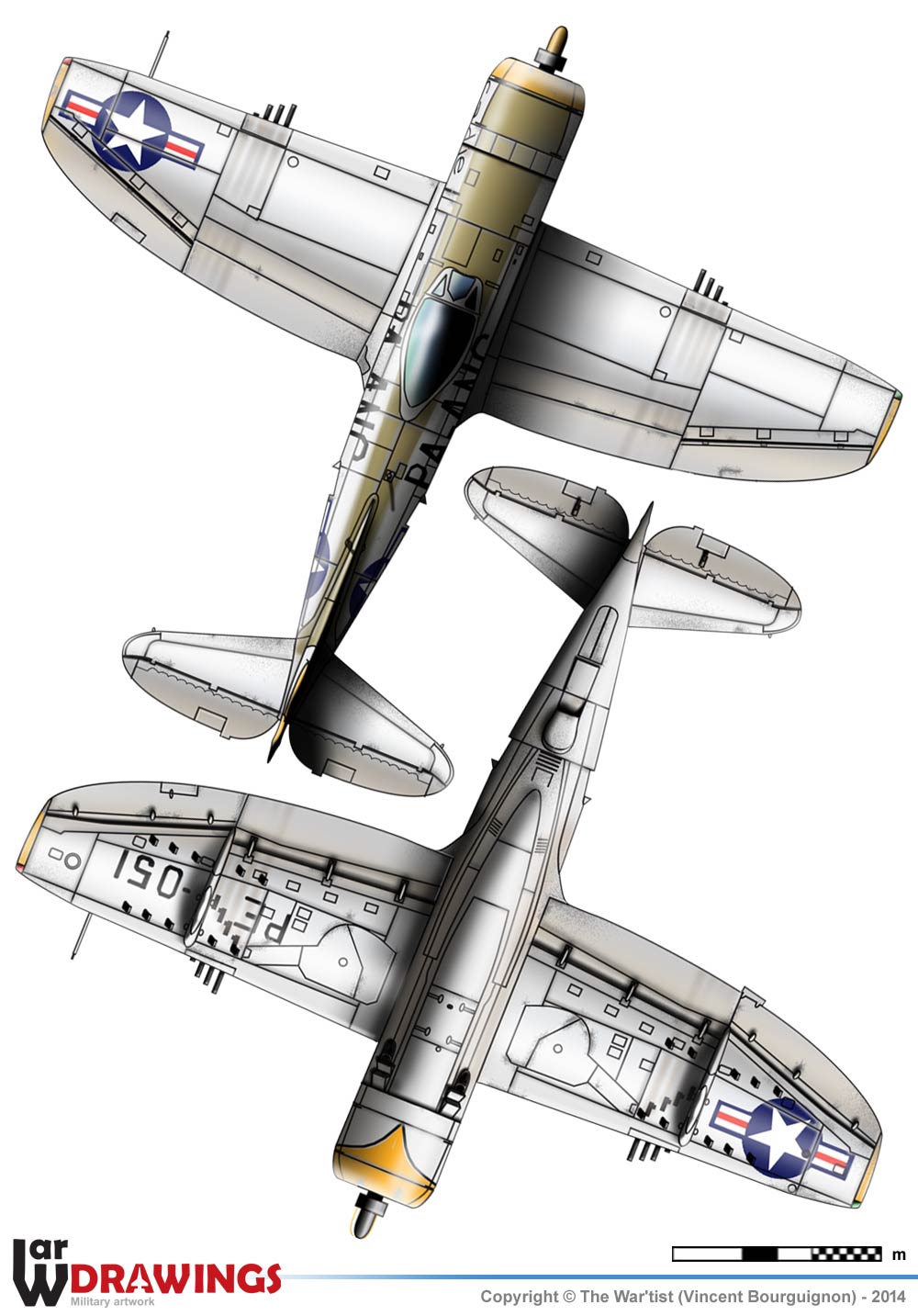

147th FS, 112nd FG, Pennsylvania Air National Guard - Based at Pittsburg, May 1951.





Specifications (P-47N)
General

Type: Fighter-Bomber
Crew: 1
First flight: September 1944
Number built: ?
Powerplant
1 × Pratt & Whitney R-2800-77 radial | 2100 hp | Pistons
Dimensions/Masses
Length: 11.00 m | Wingspan: 12.9 m | Height: 4.40 m
Wing area: 27.87 m² | Empty weight: 4988 kg
Loaded weight: ? kg | Max takeoff weight: 9387 kg
Performances
Maximum speed: 752 km/h | Ferry range: 2900 km
Service ceiling: 13106 m
Armament

Inside: 8 × .50 in (12.7 mm) M2 Browning MG (3400 rounds)
Outside: up to 1134 kg of bombs &
10 × 5 in (127 mm) unguided rockets
