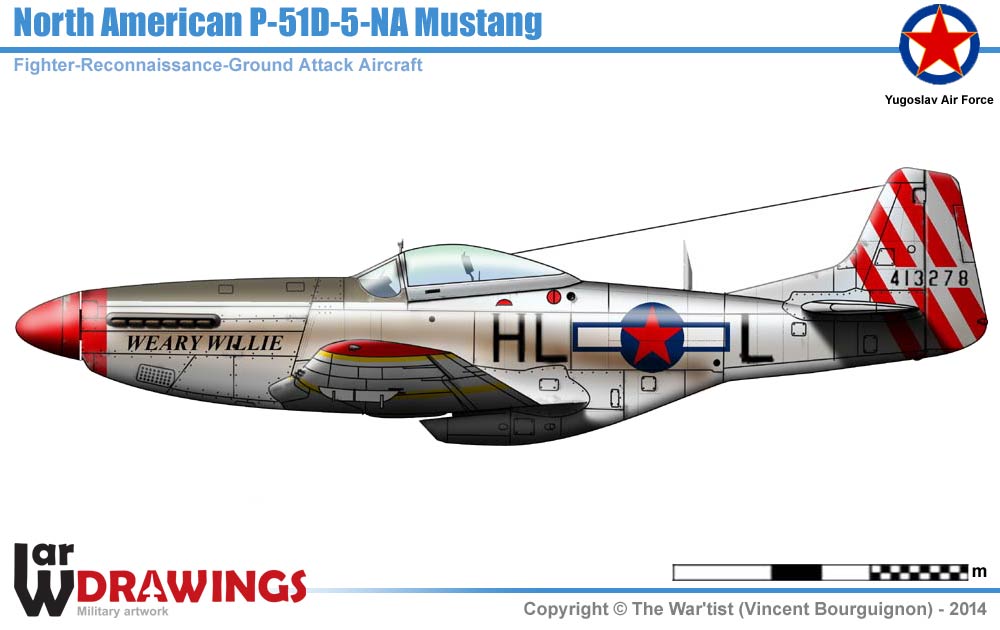

Norh American P-51D-5-NA Mustang

Modern Drawings/Air/Yugoslavia/Fighters/Others/P-51D-5-NA.htm | Update: -

ex 31st FG, USAAF - This aircraft was interned in 1945. Withdrawn from service in 1946.

Specifications (P-51D)

General

Type: Fighter
Crew: 1
First flight: 1944
Number built: ?

Powerplant

1 × Packard V-1650-7 liquid-cooled supercharged V-12 |
1490 hp, 1,720 hp at WEP | Pistons

Dimensions/Masses

Length: 9.83 m | Wingspan: 11.28 m | Height: 4.08 m
Wing area: 21.83 m² | Empty weight: 3465 kg
Loaded weight: 4175 kg | Max takeoff weight: 5490 kg

Performances

Maximum speed: 703 km/h | Ferry range: 2755 km with external tanks
Service ceiling: 12800 m

Armament

Inside: 6× .50 in (12.7 mm) M2 Browning MG (1880 rounds)
Outside: 2× hardpoints for up to 907 kg of bombs,
6 or 10× T64 5.0 in (127 mm) H.V.A.R rockets
