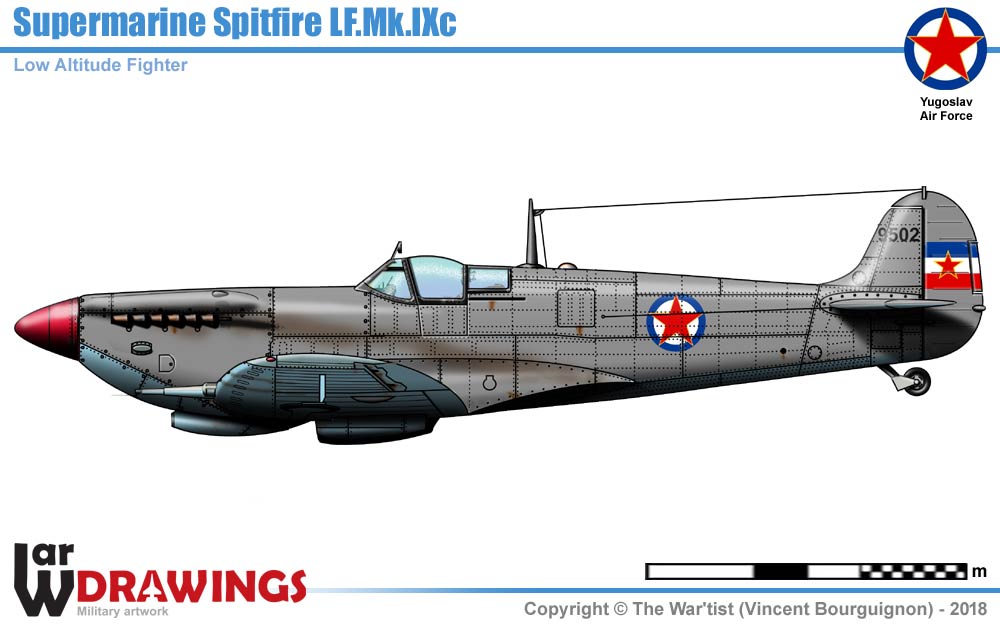

Yugoslavia, 1948.



Specifications
General

Type: Fighter
Crew: 1
First Deliveries: March 1936 (Mark I)
Introduction: ?
Number built: ?
Powerplant
1 × Rolls-Royce Merlin 63 | 1650 hp | Pistons
Dimensions/Masses
Length: 9.46 m | Wingspan: 11.22 m | Height: 3.02m
Wing area: ? m²
Empty weight: 2545 kg| Max takeoff weight: 4310 kg
Performances
Maximum speed: 650 km/h
Maximum range: 1550 km
Service ceiling: 11300 m
Armament

Inside: 2 x Hispano-Suiza HS-404 guns & 4 X 7.7 mm MG
Outside: 2 x 230 kg bomb
