Specifications
General

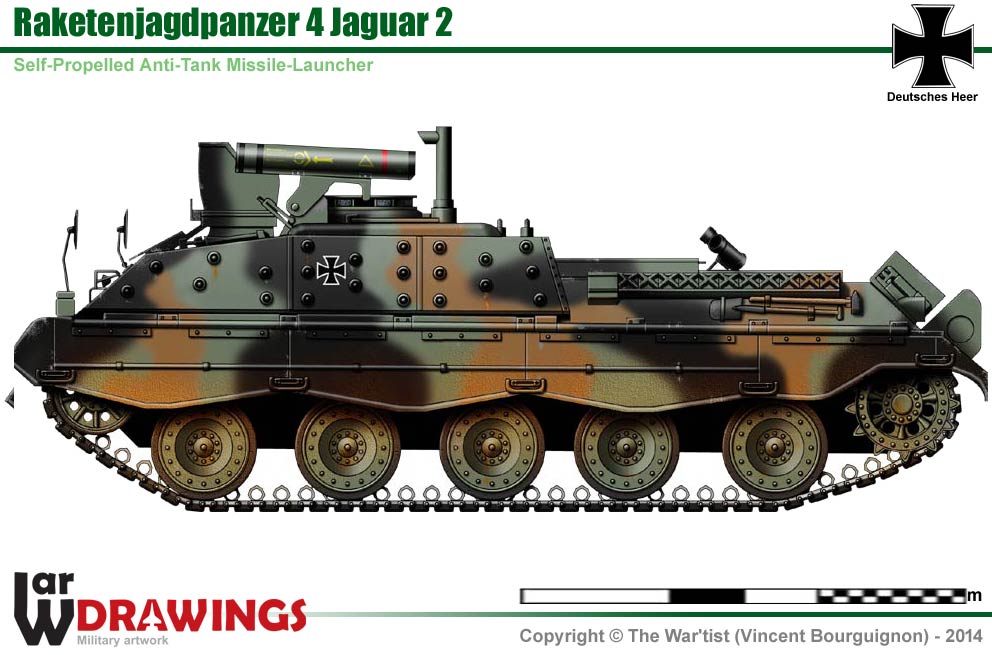

Type: Tank Destroyer w/ anti-tank guided missiles
Crew: 4 (commander, gunner, loader, driver)
Number built: 162 (1983 - 1985)
Powerplant
29.4 liter MTU MB 837 Aa V8 water-cooled multi-fuel diesel-engine / 500 hp
Power/weight: 20.16 hp/t
Dimensions/Masses
Length: 6.61 m | Width: 3.12 m | Height: 2.55 m
Weight: 24800 kg
Armor
50 mm steel + applique armour
Performances
Maximum speed: 70 km/h | Range: 400 km
Suspension: torsion bar
Armament

Main: 1 x manually reloaded TOW launcher (12 missiles)
Secondary: 1 x 7.62mm MG3 machine guns &
8 x smoke discharger
