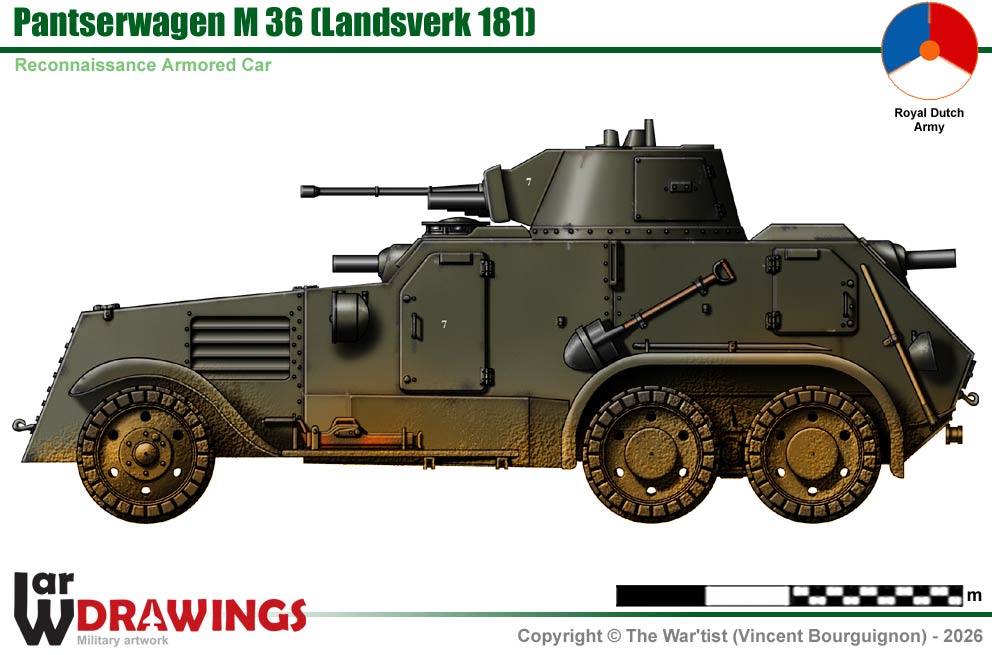

The Dutch vehicles were armed with one 37 mm Bofors gun and three secondary 7.92 mm M.20 Lewis machine guns.













L-181 no.12 with the modified side shutters. The new mobilization marking was added in late 1939.





M36 Specifications
General

Type: Armored Car
Crew:4-5 [1-2 drivers, commander, gunner, machine gunner]
Production: 12 for Netherlands
Engine
Mercedes-Benz M 09 II 6-cylinder | 68 hp | Fuel capacity: 105-125 liters
Dimensions/Masses
Length: 5.56 m | Width: 2 m | Height: 2.35 m
Weight: 6500 kg
Armor
9 mm front and sides, 5 mm top, 15 mm turret
Performances
Max. Speed: 65 km/h | Power/weight: 16.4 hp/t | Range: 250-300 km
Suspension: Leaf Springs
Armament

Main: 1 x 37 mm m/34 Bofors Paw 40
Secondary: 3 x 7.92 mm Lewis M.20 MG
