Aufklärungs Abteilung of the 227.Infanterie-Division - coastal defense in France until 1941.
Later, the division was transferred to the Eastern Front.

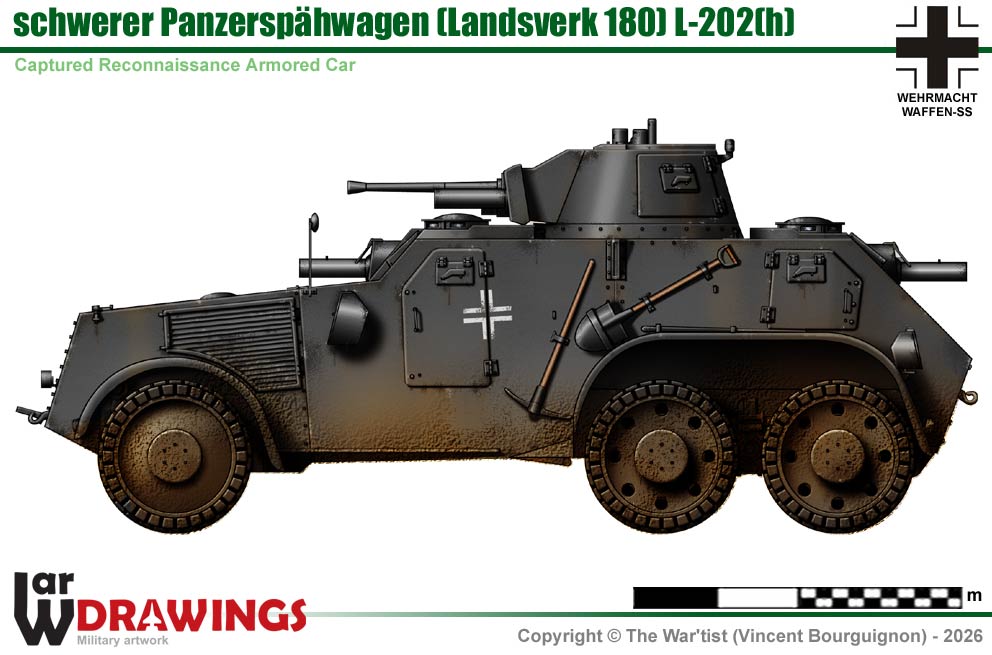

L- 180 Specifications
General

Type: Armored Car
Crew: 5 (commander, driver, gunner, artilleryman and loader)
Production: ?
Engine
Büssing-NAG L8V V8-cylinder petrol | 180 hp | Fuel capacity: 120 liters
Dimensions/Masses
Length: 5.86 m | Width: 2.24 m | Height: 2.28 m
Weight: 7825 kg
Armor
9 mm front and sides, 5 mm top, 15 mm turret
Performances
Max. Speed: 80 km/h | Power/weight: 16.4 hp/t | Range: 288 km
Suspension: Leaf Springs
Armament

Main: 1 x 37 mm Bofors Gun
Secondary: 3 x 7.7 mm Madsen MG

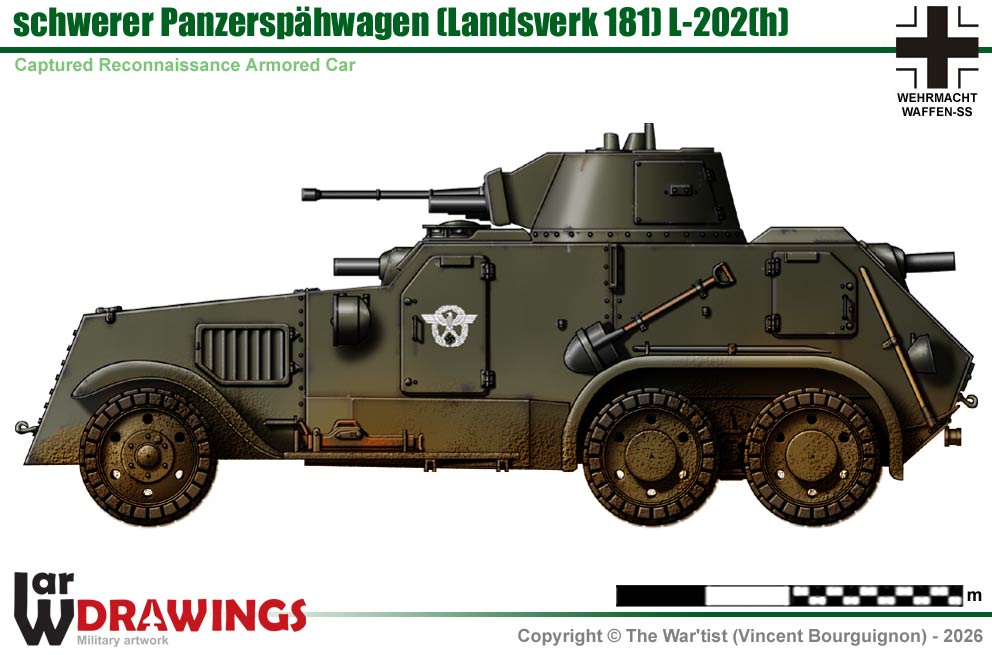

Captured Dutch L-181 into service with the German Ordnungspolizei.



L-181 Specifications
General

Type: Armored Car
Crew:4-5 [1-2 drivers, commander, gunner, machine gunner]
Production: 12 for Netherlands
Engine
Mercedes-Benz M 09 II 6-cylinder | 68 hp | Fuel capacity: 105-125 liters
Dimensions/Masses
Length: 5.56 m | Width: 2 m | Height: 2.35 m
Weight: 6500 kg
Armor
9 mm front and sides, 5 mm top, 15 mm turret
Performances
Max. Speed: 65 km/h | Power/weight: 16.4 hp/t | Range: 250-300 km
Suspension: Leaf Springs
Armament

Main: 1 x 37 mm m/34 Bofors Paw 40
Secondary: 3 x 7.92 mm Lewis M.20 MG
