FF Fifi

Models

XFF-1

Unique prototype du FF-1.

Single prototype of FF-1.

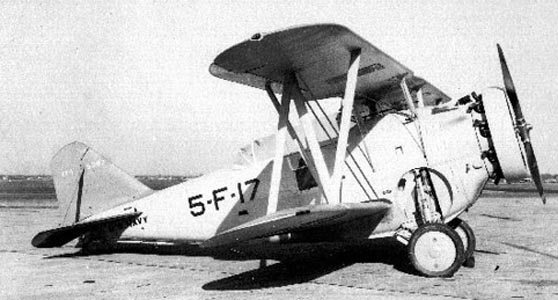

FF-1 Fifi

Chasseur biplace embarqué sur porte-avions. 27 exemplaires construits.

Two-seater carrier-borne fighter. 27 examples built.



FF-1
FF-1



Data



Drawings

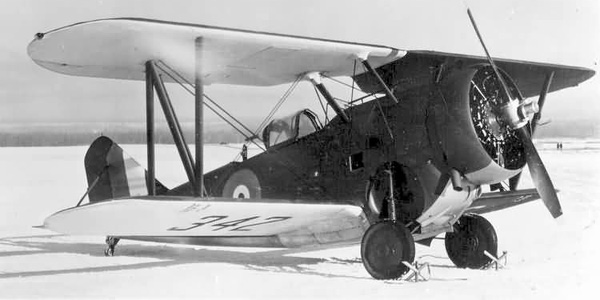

G-23 Goblin

Version construite sous licence par la Canadian Car & Foundry Company. 52 exemplaires construits.

Version built under license by Canadian Car & Foundry Company. 52 examples built.


CCAF G-23 Goblin I





Drawings



AXG1

Un Grumman G-23 fut acquis par l' aéronavale impériale japonaise pour évaluation en 1935.

A Grumman G-23 was acquired by the Japanese imperial naval air service for evaluation in 1935.

GE.23 Delfin

Version d'exportation pour l'Espagne. 34 exemplaires construits.

Export version for Spain. 34 a/c built.



Drawings





Conversions

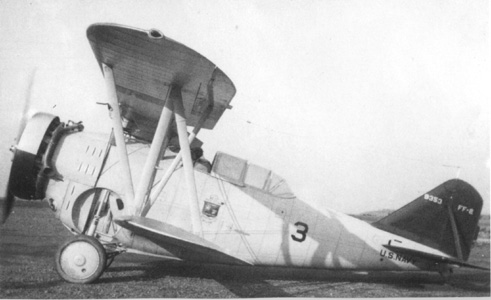

FF-2 Fifi

25 exemplaires du FF-1 furent reconvertis par la Naval Aircraft Factory en chasseur d'entraînement, par l'adoption de double-commandes.

25 copies of FF1 were converted by the Naval Aircraft Factory into Fighter-Trainer, by adopting dual controls.



FF-2



Specifications

Type: Fighter-Trainer
Crew: 2

Wright R-1820-78 | 700 hp | Pistons
Dimensions/Masses
Length: 7.47 m | Width: 10.52 m | Height: 3.38 m
Weight: 1474 kg | Max. Combat Weight: 2190 kg
Performances
Max. Speed: 333 km/h | Ceiling: 6400 m | Range: 1428 km
Armament

MG: 3 x 0.30 in (7.62mm) M1919 Browning MG
Bombs: -





Drawings

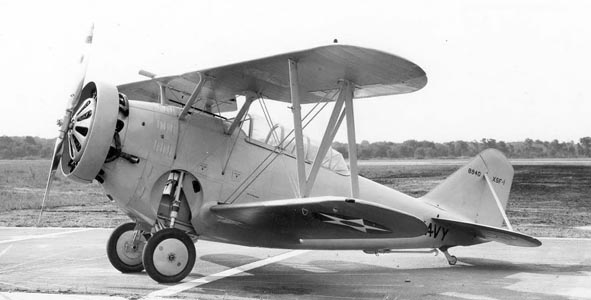

XSF-1 (G-6)

Second prototype du FF destiné à la reconnaissance. Un seul exemplaire.

Second prototype, of FF destined to reconnaissance. A single copy built.



XSF-1

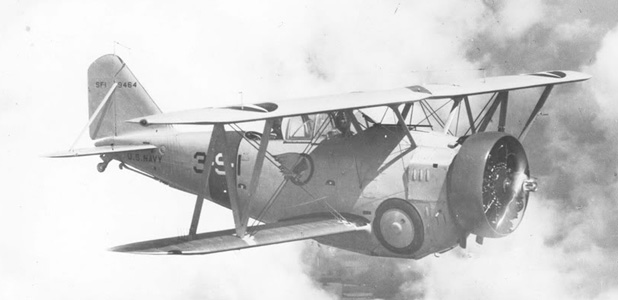

SF-1

Version de reconnaissance, construite à 33 exemplaires, pour l'US Navy.

Reconnaissance version, built 33 copies for the US Navy.


SF-1 - Scouting Squadron Three (VS-3B) in 1935

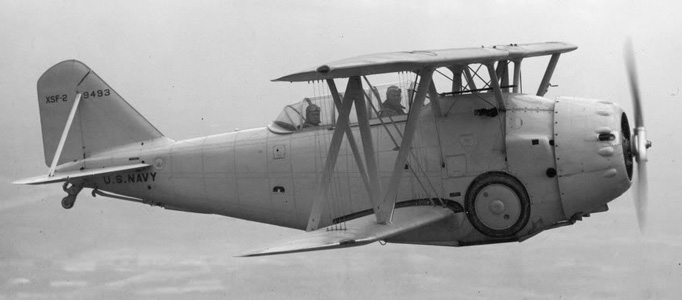

XSF-2

Exemplaire unique du SF-1 propulsé par un moteur Pratt & Whitney R-1535-72 Twin Wasp Junior, développant 650 cv,et une hélice Hamilton Standard.

Single copy of SF1 powered by a Pratt & Whitney R-1535-1572 Twin Wasp Junior engine, developing 650 hp, and a propeller Hamilton Standard.


XSF-2
