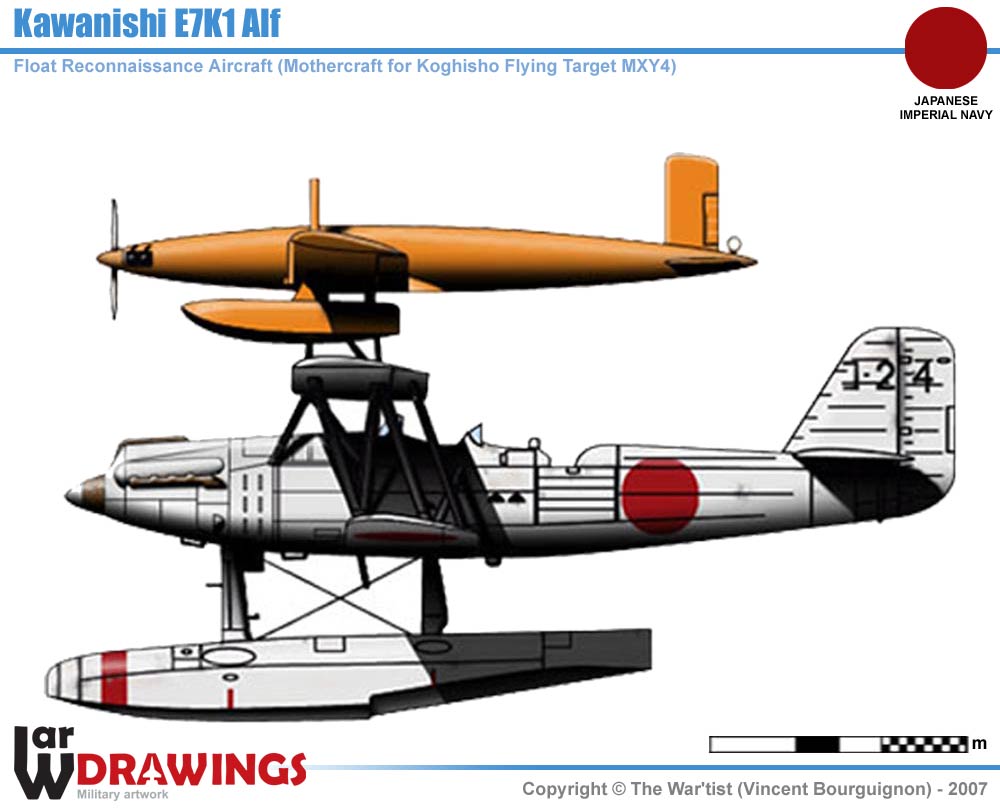

E7K1 Alf Specifications

Type: Reconnaissance floatplane
Crew: 3

Hiro Type 91 | 750 hp | Pistons
Dimensions/Masses
Length: 10.41 m | Width: 14.00 m | Height: 4.85 m
Weight: 1970 kg | Max. Combat Weight: 3000 kg
Performances
Max. Speed: 239km/h | Ceiling: 7060 m | Range: ? km
Armament

MG: 3 x 7.7mm Type 92 MG
Bombs: 120kg
