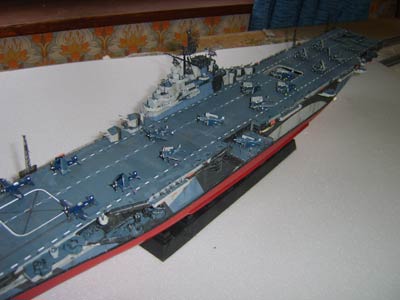

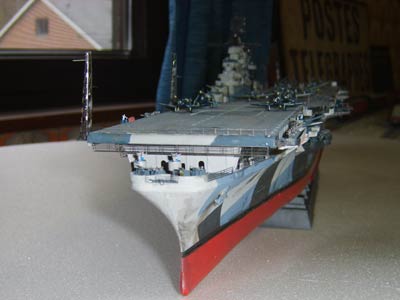

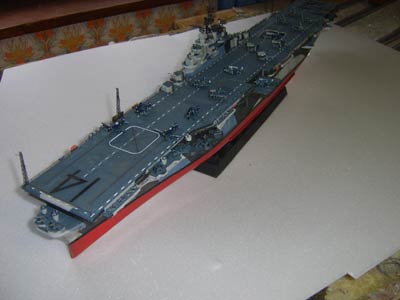

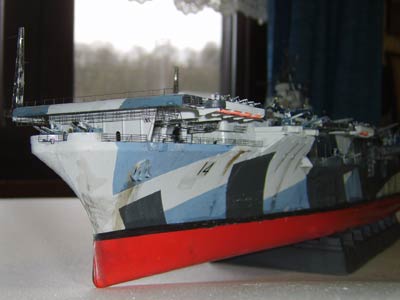

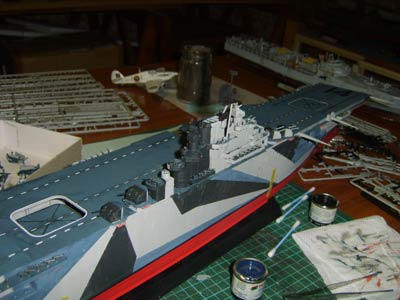

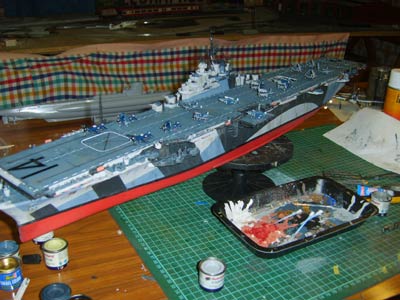

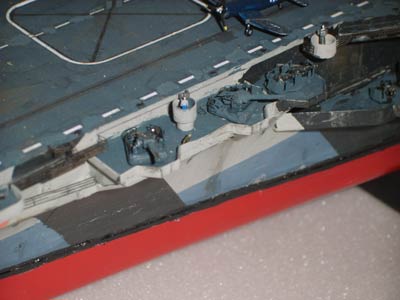

USS Ticonderoga (Essex-Class)
| GENERAL DATA | |||
| Other Designation(s) | - |
||
| Year | 2012 |
Scale | 1/350 |
| Manufacturer(s) | Trumpeter |
||
Essex
Class Specifications |
| General |
Type:
Aircraft Carrier |
| Dimensions/Masses |
| Maximum displacement:
27000 t | Length: 265.79 m Width: 28.35m | Draught: 8.75 m |
| Propulsion/Performances |
| Maximum speed:
33 knots 4 propeller shafts, 8 boilers 4 turbines with reduction by gears Westinghouse (150 000 hp) |
| Armor |
| Maximum shielding of
the belt: 102 mm Maximum horizontal Shielding: 64 mm Maximum shielding: ? |
| Armament |
|
Drawings |
