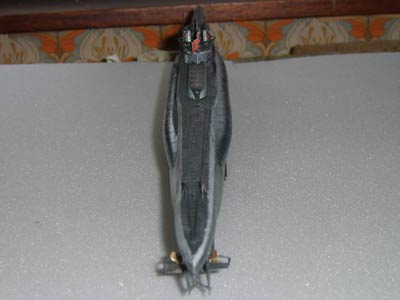

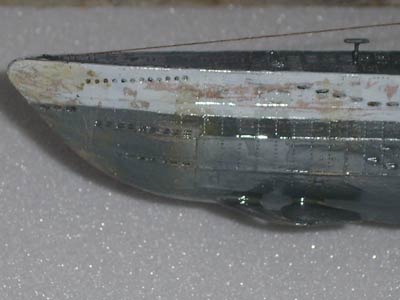

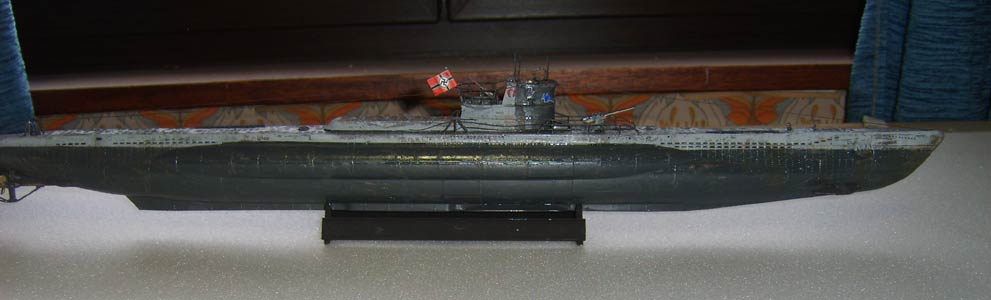

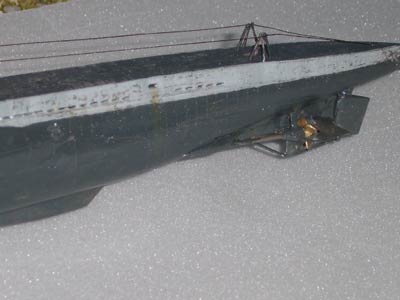

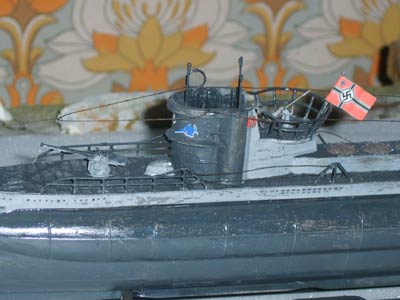

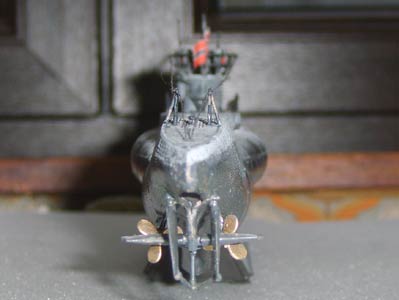

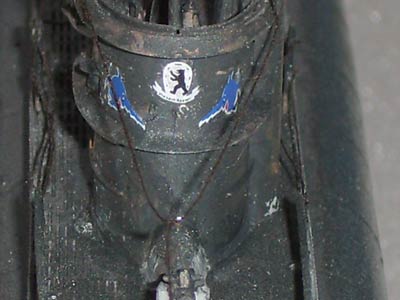

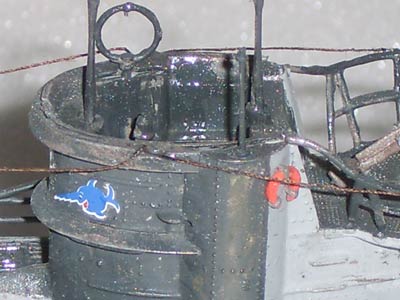

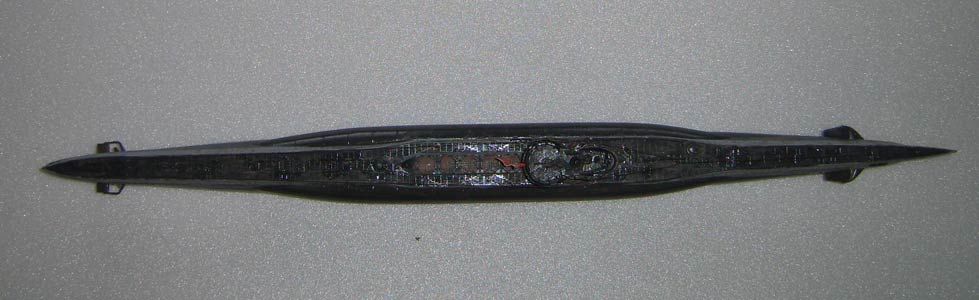

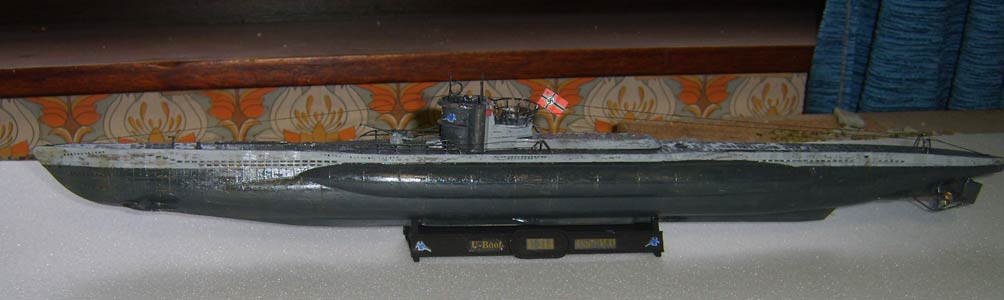

U-214 (U-Boot Type IXD)

GENERAL DATA
-
2011
1/144
Revell





















U-Boot Typ IXD Specifications

Type: Submarine
Crew: 55-63

Dimensions/Masses
Maximum displacement: 1610 t surfaced
1799 t submerged | Length: 87.6 m
Width: 7.5 m | Draught: 5.4 m
Propulsion/Performances

Maximum speed: 20.8 knots (38.5 km/h) surfaced
6.9 knots (12.8 km/h) submerged
Maximum range: 18300 km surfaced, 106 km submerged
2 × MAN M9V40/46 supercharged 9-cylinder diesel engines, 4400 hp
2 × SSW GU345/34 double-acting electric motors, 1000 hp
6 x Daimler-Benz MB501 20 cylinder Diesel marine engines with total power of 9,000hp (IX-D Variant)

Armor
Maximum shielding: none
Armament
  • 6 × torpedo tubes (4 bow, 2 stern)
  • 24× 533 mm (21.0 in) torpedoes

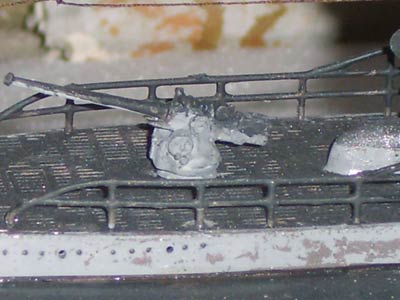

  • 1 × 10.5 cm SK C/32 naval gun[1] with 110 rounds
  • Various combinations of AA cannons: Common calibers 20mm, 30mm and 37mm
