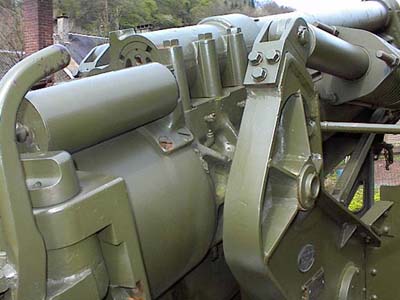

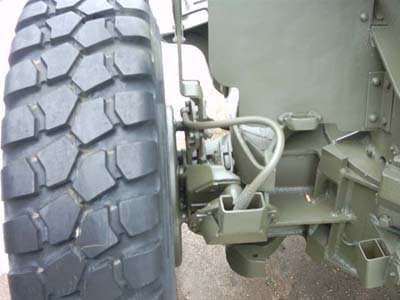

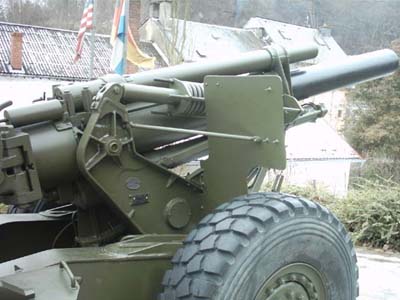

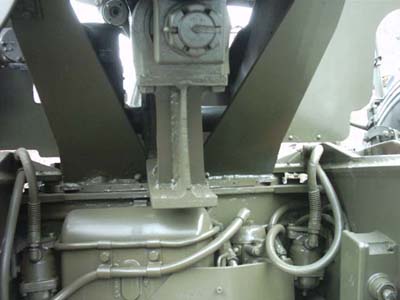

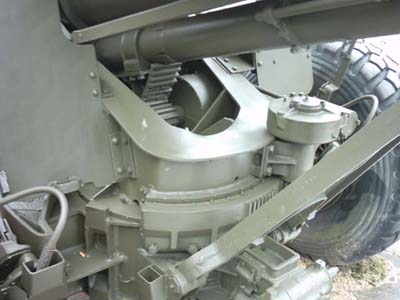

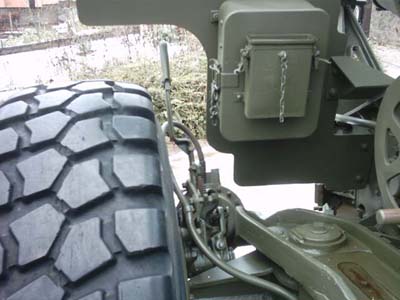

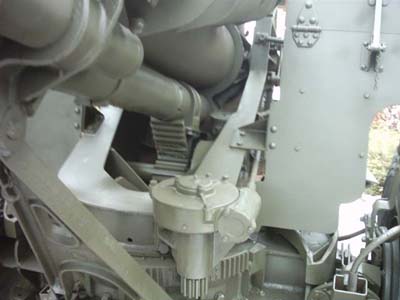

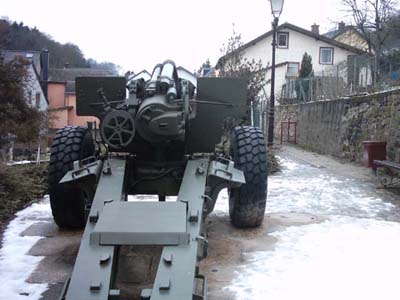

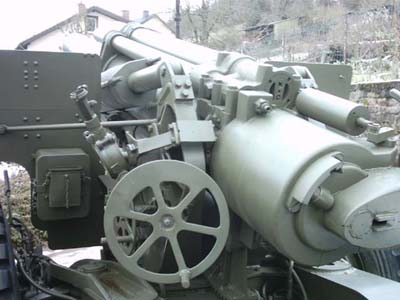

105 mm M1A1 Field Howitzer

GENERAL DATA
Other Designation(s)
-
Year
?
 Location
Diekirch, Luxembourg















Specifications
General

Type: Field Howitzer
Crew: 8 | Shell: 105x372R | Caliber: 105 mm (4.1 in)
Carriage: split trail | Elevation: -5° to +66° | Traverse: 46°
Sights telescopic: M16
Dimensions/Masses
Length: 5.94 m | Barrel length: 2.31 m L/22 | Width: 2.21 m |
Weight: 2260 kg | Height: 1.73 m
Performances
Rate of fire: 15 rpm | Muzzle velocity: 472 m/s |
Maximum firing range: 11270 m
