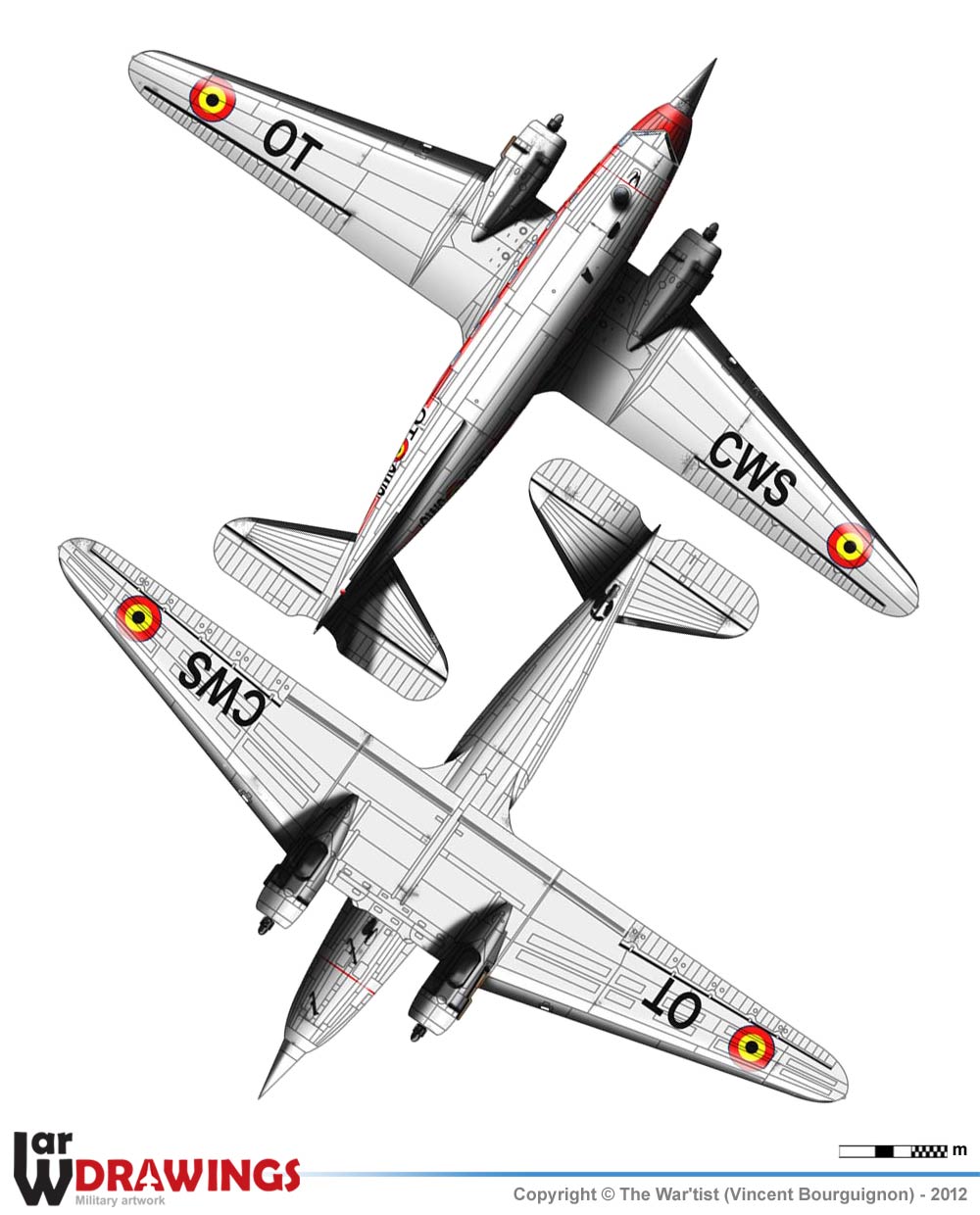

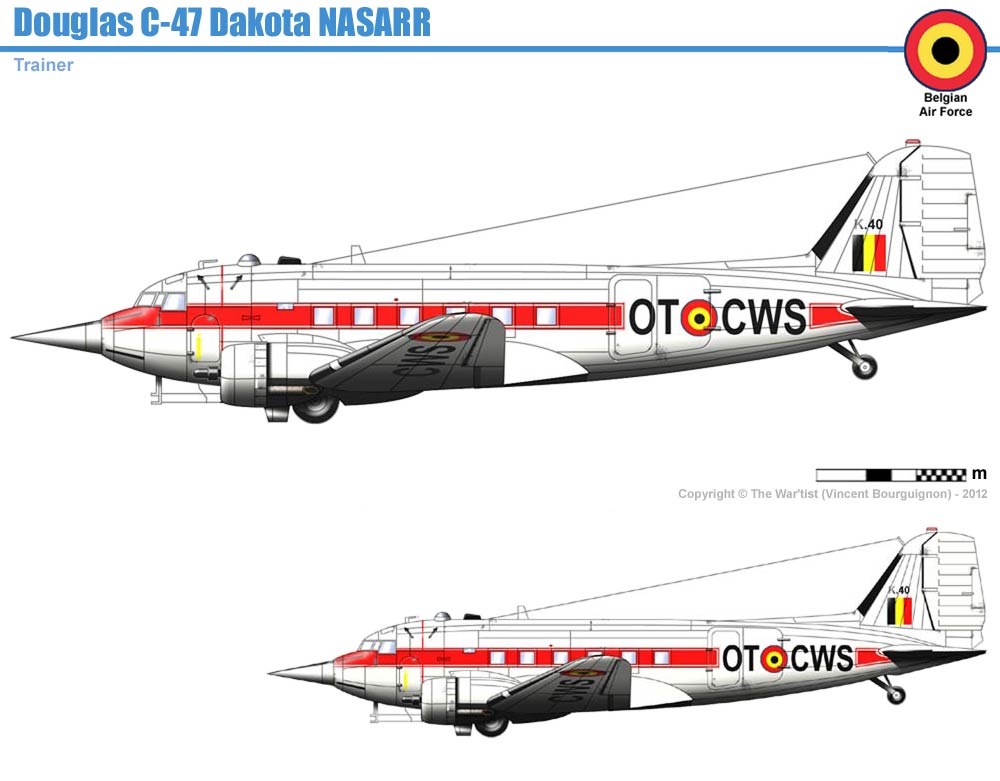

Douglas C-47 NASARR

Modern Drawings/Air/Belgium/Transports/C-47-NASARR.htm | Update: -

Aircraft equipped with NASARR radar to train F-104G pilots.
The aircraft was called "Pinnochio" due the long nose. (1965)

Specifications C-47B

General

Type: Trainer for Radar NASARR o fF-104G
Crew: 3
First flight: 23 December 1941
Introduction: 1964 for C-47B NASARR
Number built: 2 aircraft modified with NASARR radar

Powerplant

2 × Pratt & Whitney R-1830-90C | 1200 hp | Pistons

Dimensions/Masses

Length: 19.43 m | Wingspan: 29.41 m | Height: 5.18 m
Wing area: 18.22 m²
Empty weight: 8226 kg | Max takeoff weight: 14061 kg

Performances

Maximum speed: 360 km/h
Combat radius: 2575 km | Ferry range: 5795 km
Service ceiling: 8045 m

Armament

Inside: -
Outside: -
