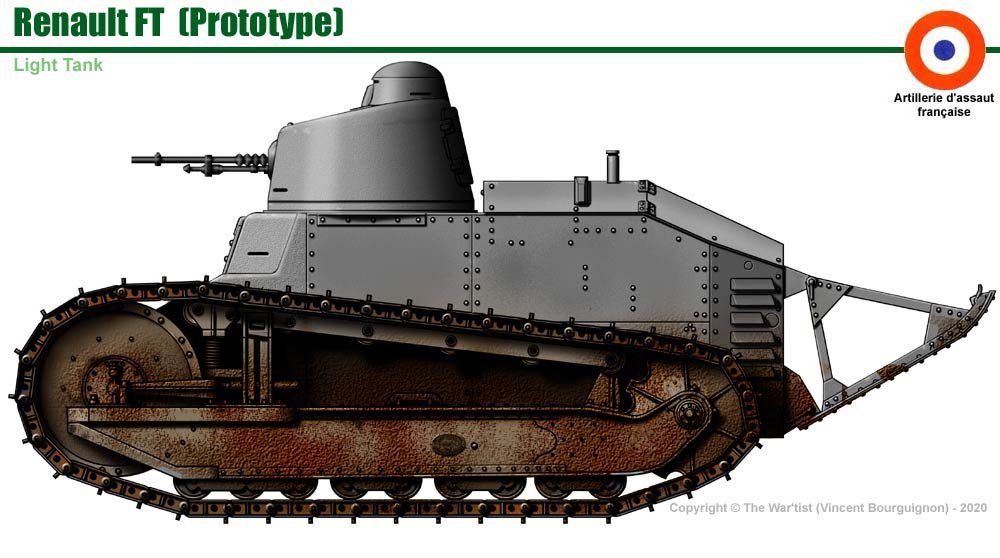

The Renault FT's initial design. Note that the driver's hatch consists of one (cast) piece.







Prototype of the FT Tank with Turret Omnibus, The rear of the production Renault FT was different than on the first prototype.

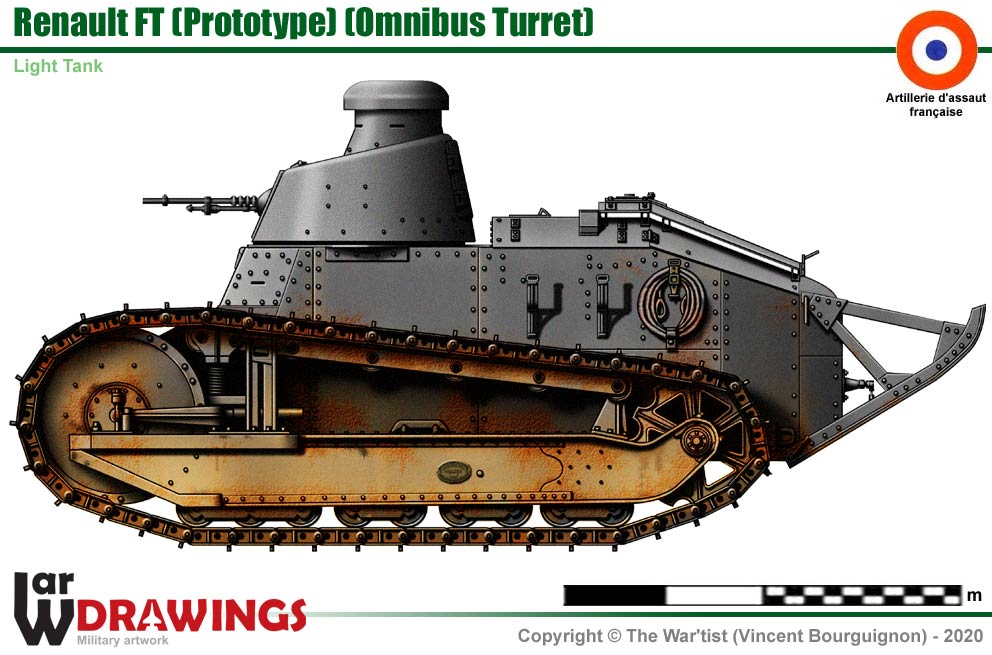

Other prototype with turret Omnibus. Note that that the driver's station hatch is in 3-pîece (production) design.




Prototype of the FT Tank, Tank Camp of Champlieu, France, March 14 1917





Role: Light Tank
Crew: 2
Designed: 1917
Length: 4.95 m | Width: 1.73 m | Height: 2.14 m | Weight: 6.5 t
Renault 4-cyl petrol | 35 hp | Power/weight: 5 hp/t
Performances
Maximum speed: 8 km/h | Range: 65 km | Suspension: vertical springs
Armor
Maximum: 22 mm, Minimum: 6 mm
Armament
Main: 1 x 7.92 mm MG
Secondary armament: -
