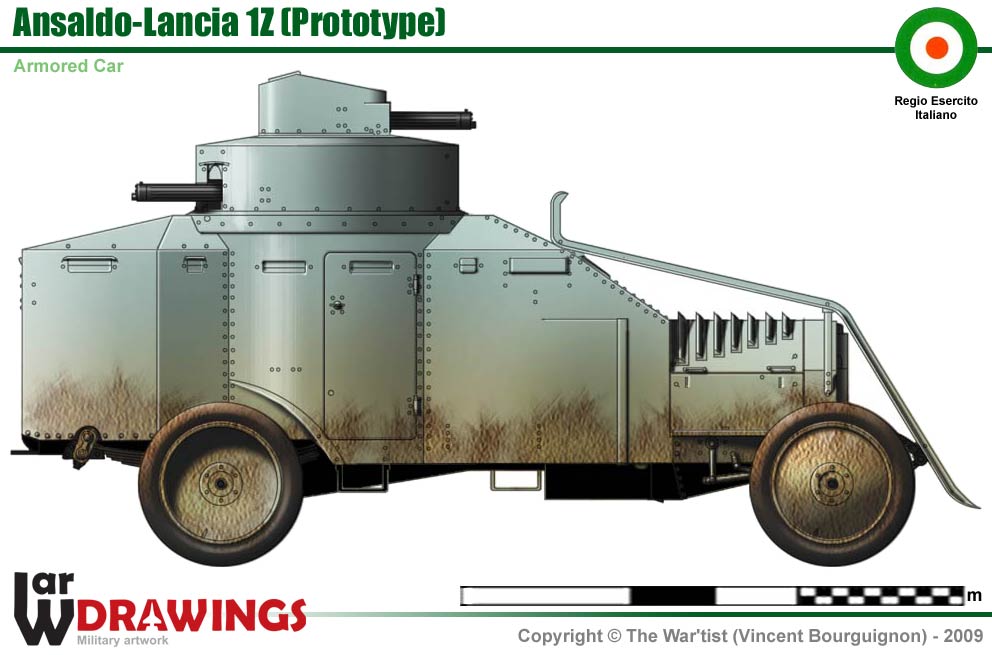

Prototype realized
by Ansaldo of Genoa by mounting of an armored hull on the chassis of
a Lancia 1Z van. |
| Specifications |
| General |
| Role: Armored Car Crew: 6 Designed: 1917 |
| Dimensions |
| Length: 5.40 m | Width: 1.80 m | Height: 2.40 m | Weight: 5.4 t |
| Engine |
| Lancia 1Z 4-cyl petrol | 60 hp | Power/weight: 11.1 hp/t |
| Performances |
| Maximum speed: 60 km/h | Range: 200 km | Suspension: oscillating bogies with leaf springs |
| Armor |
| 6-9 mm |
| Armament |
| Main: 3 x 6.5 mm Fiat-Revelli 1914 MG (water cooled) Secondary armament: - |
