Other Light Vehicles

Tatra 57K

Le Tatra 57 K était propulsé par un moteur 4 cylindres (refroidissement par air) de 23 ch et était seulement utilisable sur route. Entre 1941 et 1943, environ 6000 furent produits.

Tatra 57 K was powered by 4 cylinder air-cooled 23hp engine and it could only be used on the roads and not cross-country. From 1941 to 1943, some 6000 were produced



Tatra 57K



Mercedes-Benz 320 Model 1939

1764 Mercedes-Benz 320 furent produits entre 1938 et 1940. Ce véhicule léger de transport de personnel était propulsé par un Daimler-Benz 3.2l (essence) - 6 cylindres - 78 ch. Il pouvait transporté 2 hommes en plus de son équipage de 2 hommes.

1764 Mercedes-Benz 320 was produced from 1938 to 1940 and some 1764 were made. This light personnel carrier was propelled by a Daimler-Benz 3.2l (gasoline) - 6 cylindres - 78 hp. It could be transport 2 men in add of its 2 crewmen.



Mercedes-Benz 320 Modell 1939.

Mercedes-Benz L 1500 A

Le Mercedes-Benz L 1500 A était basé sur le châssis du camion de 1.5 tonne. Ce transport d'infanterie pouvait transporter 7 hommes en plus de son équipage de 2 hommes. Il fait partie de la classe 1500 comme le Steyr 1500 A. Entre 1941 et 1943, 4900 L 1500 A furent produits.

Mercedes-Benz L 1500 A was based on chassis of 1.5 ton truck. This infantery carrier could be transport 7 people and its 2 crewmen. It was a Class 1500 vehicle like the Steyr 1500 A. From 1941 to 1943, some 4900 L 1500 A infantry transports were produced.



Mercedes-Benz L 1500A



Data Mercedes-Benz L1500 A
Dimensions
Weight: 2390 kg - Crew: 2-9 - Length: 4.93 m - Width: 2.05 m - Height: 2.25 m
Propulsion
Engine: Daimler-Benz M159 2.6L, 6 cyl., 60 hp - Fuel: Gasoline (70L)
Performances
Speed: 84 km/h (on road) - 60 km/h (off road) - Range: 370 km (on road), 230 km (off road)
Armament

Type: none - Ammo: none

Armor
none



Skoda Typ 952

Véhicule 4x2 d'origine tchèque, produit entre 1941 et 1943 à 1626 exemplaires (dont 100 kommandeurwagens et 30 ambulances), utilisé par la Whermacht. Types: Kübelwagen (Kfz.15), Kommandeurwagen (Kfz.21) (cabriolet), Sanitätskraftwagen (Kfz.31?) (ambulance).

4x2 vehicle of Czech origin, producted between 1941 and 1943 to 1626 specimens (including 100 kommandeurwagens and 30 ambulances), used by Whermacht. Types: Kübelwagen (Kfz.15), Kommandeurwagen (Kfz.21) (cabriolet), Sanitätskraftwagen (Kfz.31?) (ambulance).

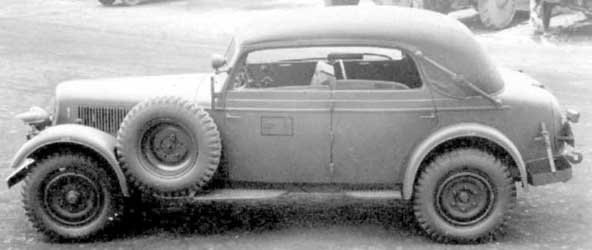

Skoda Typ 952 Kommandeurwagen (Kfz.21)
src: Site Oldtimers

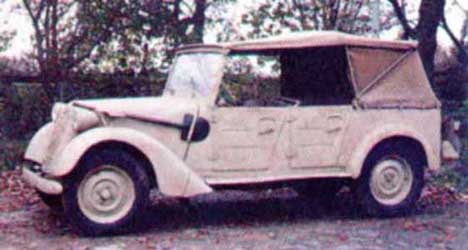

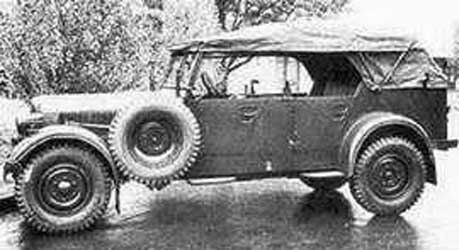

Skoda Typ 952 Kübelwagen (Kfz.15)
src: Site Oldtimers



Data Skoda Typ 952 Kübelwagen (Kfz.15)
Dimensions
Weight: ?kg - Crew: 4 - Length: 4.80 m - Width: 1.80 m - Height: 1.72 m
Propulsion
Engine: Skoda, 6 cyl., 80-85 hp - Fuel: Gasoline
Performances
Speed: 100 km/h (on road) - ? km/h (off road) - Range: ? km (on road), ? km (off road)
Armament

Type: none - Ammo: none

Armor
none



Drawings

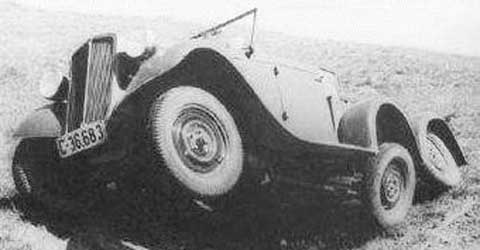

Skoda Typ 903

no details



Skoda Typ 903
src: Site Oldtimers

Captured

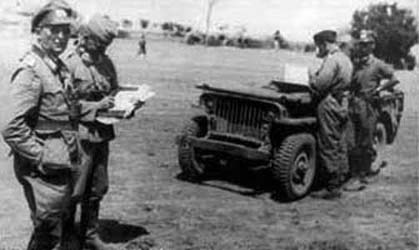

Jeep-Willys in service in Wehrmacht in Russia
Jeep-Willys captured to the Russians
src: ?
src: ?



Drawings

Others

-

Stabswagen 1/35



Light Vehicles
