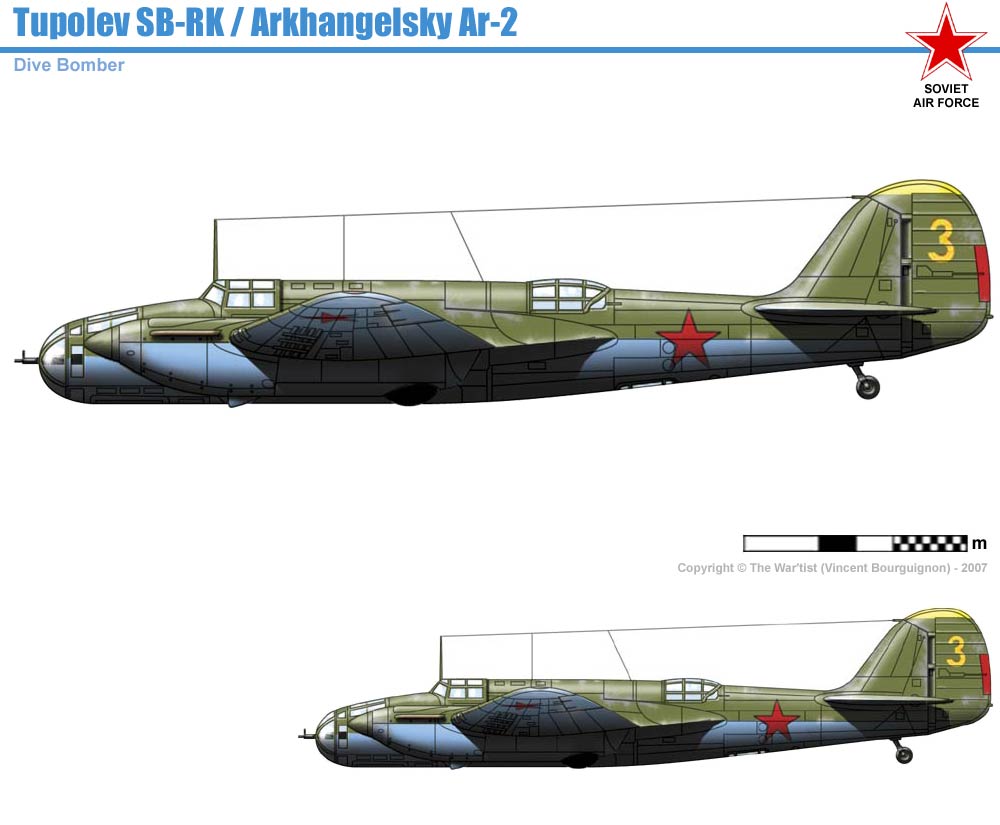

Ar-2 Specifications

Type: Diving Bomber
Crew: 3

2 x M-105R | 1100 hp | Pistons
Dimensions/Masses
Length: 12.50 m | Width: 18.50 m | Height: 4.70 m
Weight: 4735 kg | Max. Combat Weight: 6300 kg
Performances
Max. Speed: 480 km/h | Ceiling: 10100 m | Range: 1500 km
Armament

MG: 3 x 7.62mm ShKAS MG
Bombs: 6 x 100kg bombs (inside)
