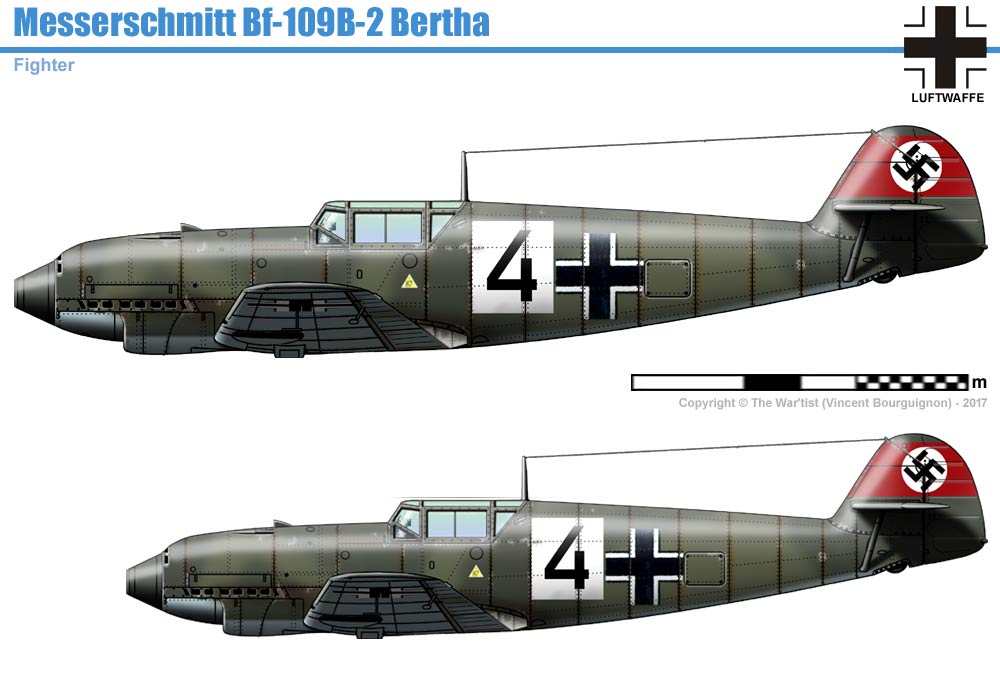

Internationales Flugmeeting of Dübendorf/Schweiz 1937.

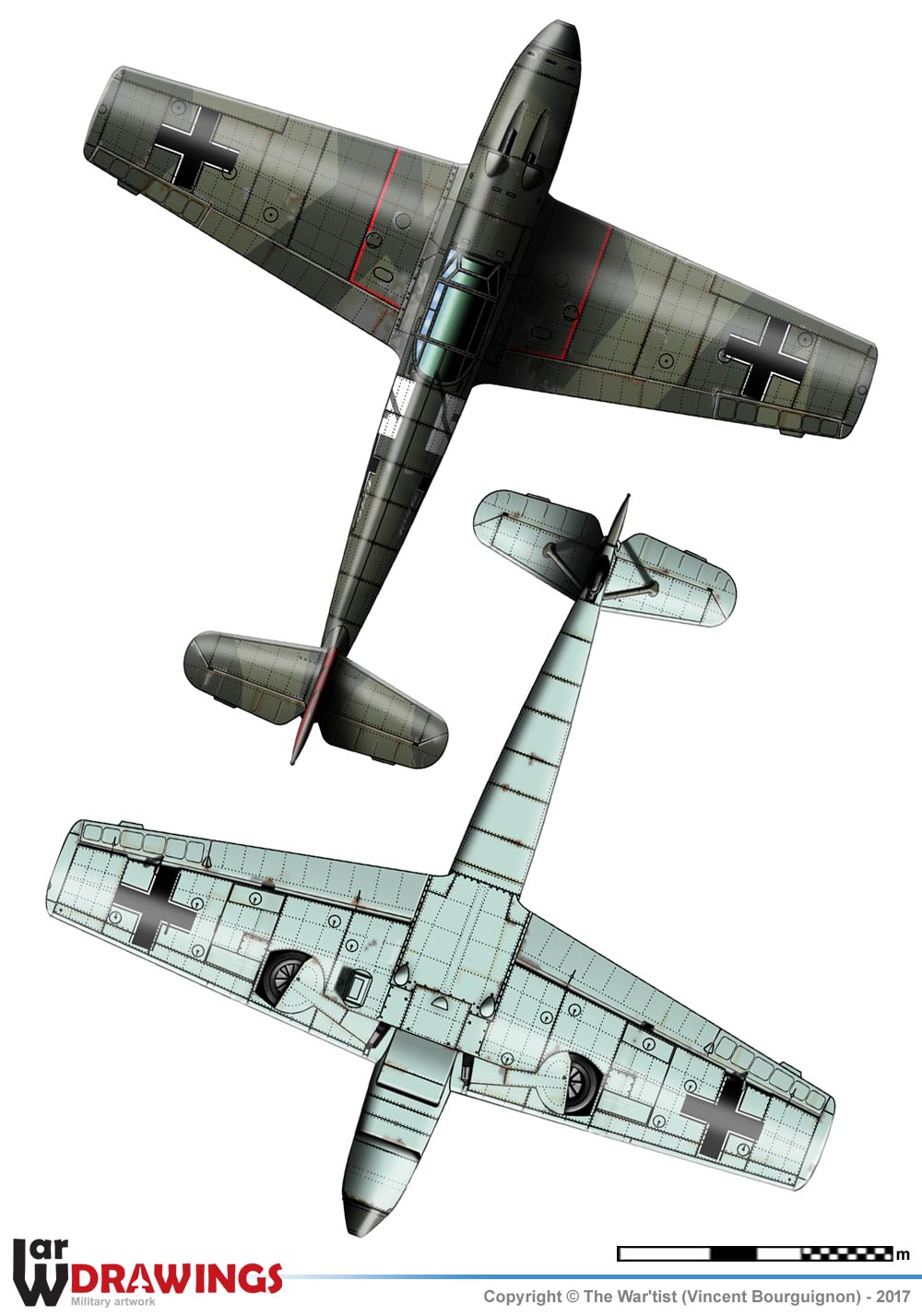

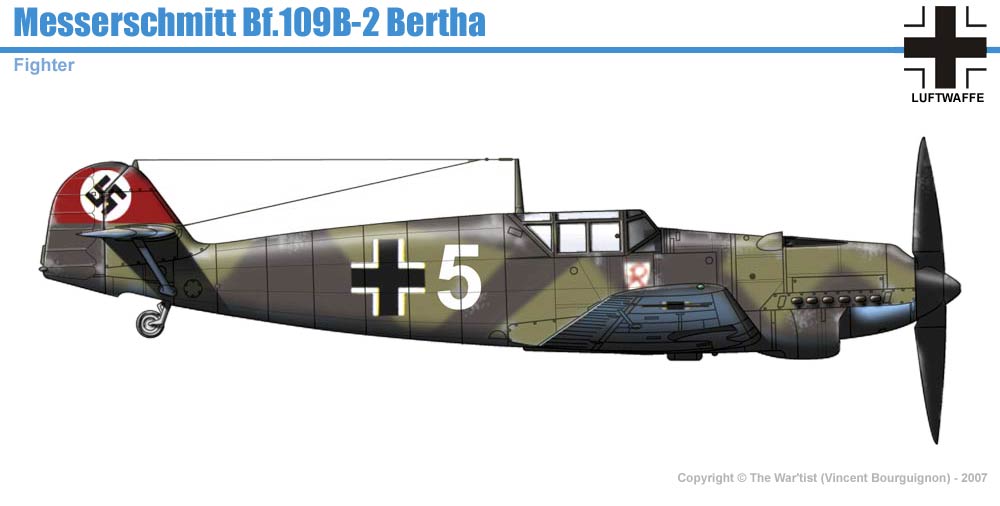

Me Bf109B-2 Specifications

Type: Fighter
Crew: 1

Jumo210Da | 720 hp | Pistons
Dimensions/Masses
Length: 8.70 m | Width: 9.90 m | Height: 2.45 m
Weight: 1597 kg | Max. Combat Weight: 2152 kg
Performances
Max. Speed: 470 km/h | Ceiling: 9000 m | Range: 450 km
Armament

MG: 2 x 7.92mm MG-17
Bombs: -
