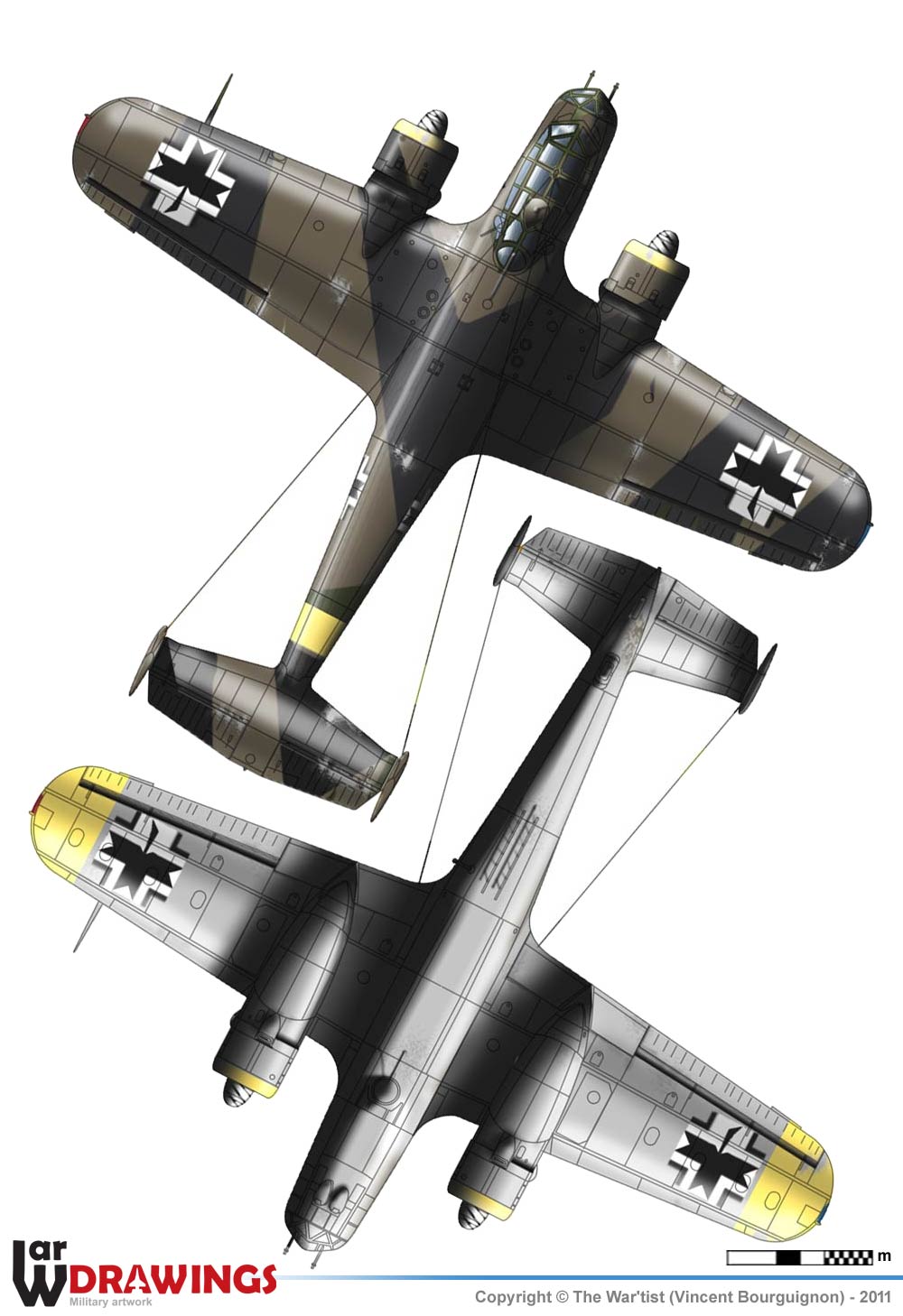

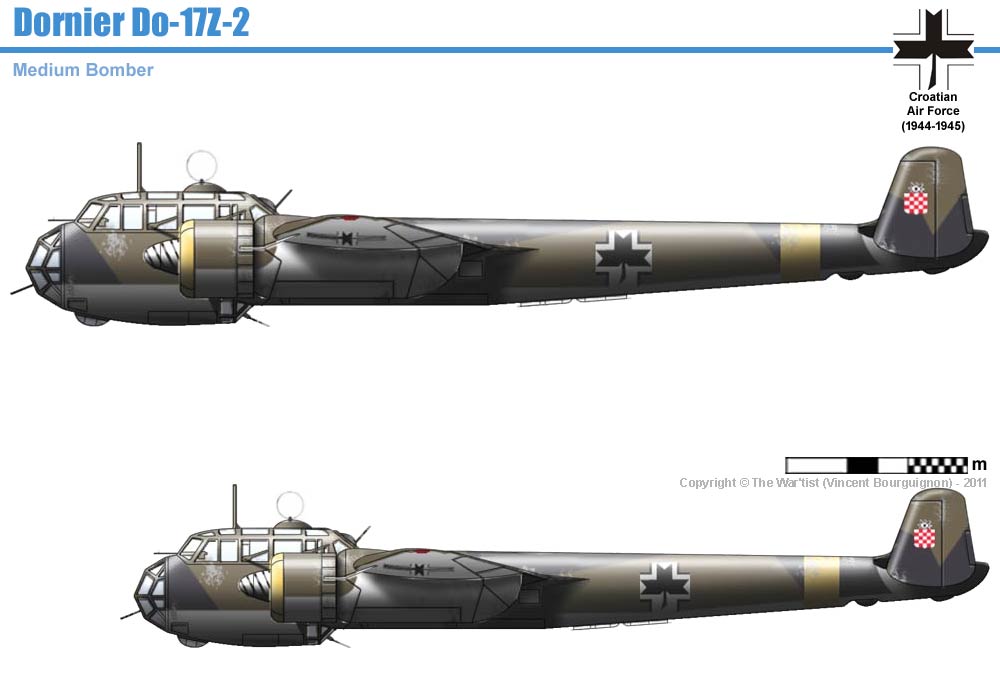

19. Bombardersko Jato, 1. Zrakoplovna Skupina - Zagreb, spring 1945.



Do-17 Z-2 Specifications
General

Type: Bomber
Crew: 4
Engine
2 x Bramo Fafnir 323P | 1000 hp | Pistons
Dimensions/Masses
Length: 15.79 m | Width: 18.00 m | Height: 4.56 m
Weight: 5210 kg | Max. Combat Weight: 9000 kg
Performances
Max. Speed: 425 km/h | Ceiling: 8150 m | Range: 1160 km
Armament

MG: 6 x 7.92mm MG 15 or
20 mm MG FF & 5 x 7.92mm MG 15
Bombs: 1000 kg bombs (Inside)
