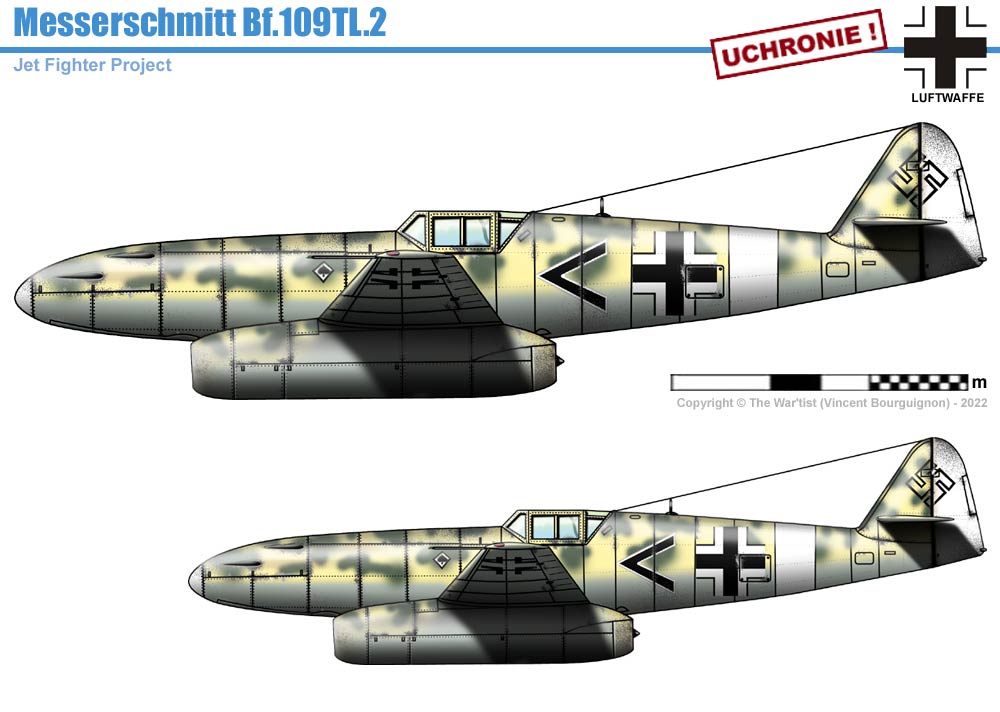

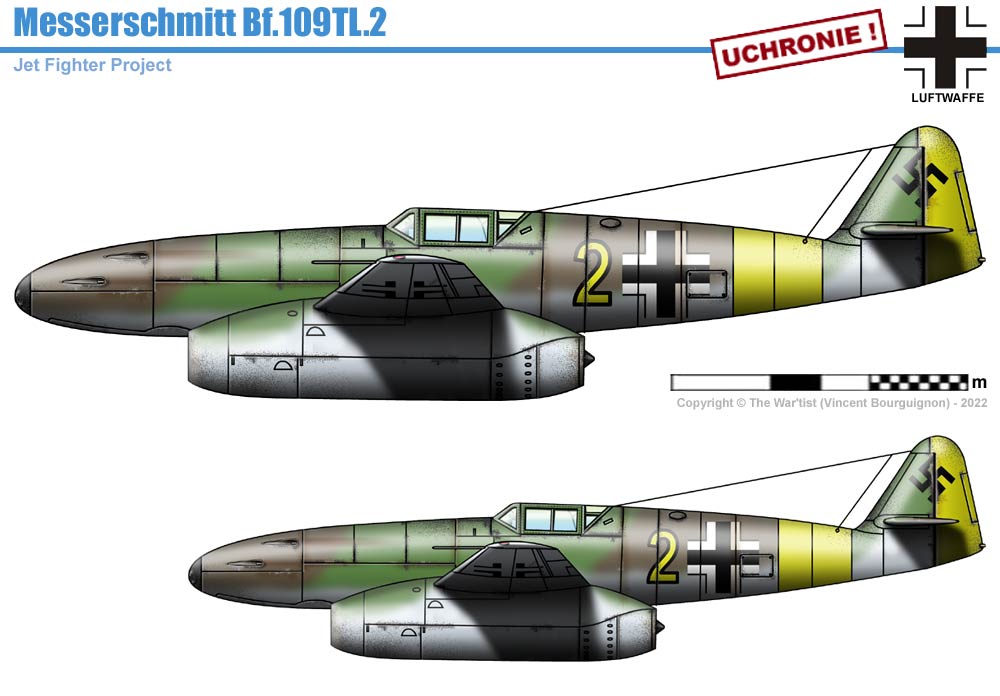

Project created from the Bf.109 with a jet engine. Presented in January 1943 as a replacement project in place of the Me.262, in case of failure. Following intensive study, by March 1943 it was decided that so many modifications to the various components would be needed that no time would be gained over the Me 262 development, thus the project was abandoned. (Artist's View!) |
Me
Bf109TL Specifications |
| General |
Type:
Jet Fighter |
| Engine |
| 2× Junkers Jumo 004B-1 turbojets, 8.8 kN each |
| Dimensions/Masses |
| Length: 9.50 m | Width:
12.55 m | Height: 2.90 m Weight: 3070 kg | Max. Combat Weight: 4750 kg |
| Performances |
| Max. Speed: 980 km/h | Ceiling: 11400 m | Range: ? km |
| Armament |
MG:
2 x 30mm MK 103 & 2 x 20mm MG 151/20 |
