Pillau, 1942-1943.

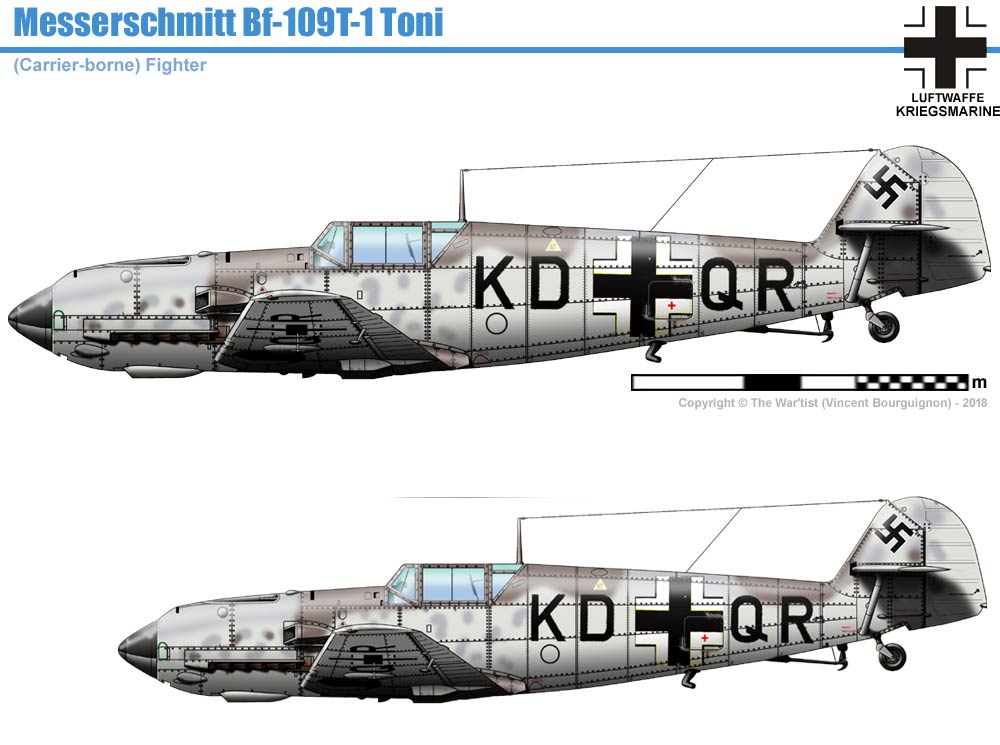

Me Bf109T Specifications

Type: Shipborne Fighter
Crew: 1

Daimler Benz DB601N 12-cylinder, inverted Vee, liquid-cooled 1200 hp | Pistons
Dimensions/Masses
Length: 8.64m | Width: 9.87m | Height: 2.50m
Weight: 1900 kg | Max. Combat Weight: 2665 kg
Performances
Max. Speed: 560 km/h | Ceiling: 11000 m | Range: 660 km
Armament

MG: 2 x 20mm MG FF guns & 2 x 7.92mm MG-17
Bombs: 4 X 50kg bombs or 1 X 120kg bomb (Outside)
