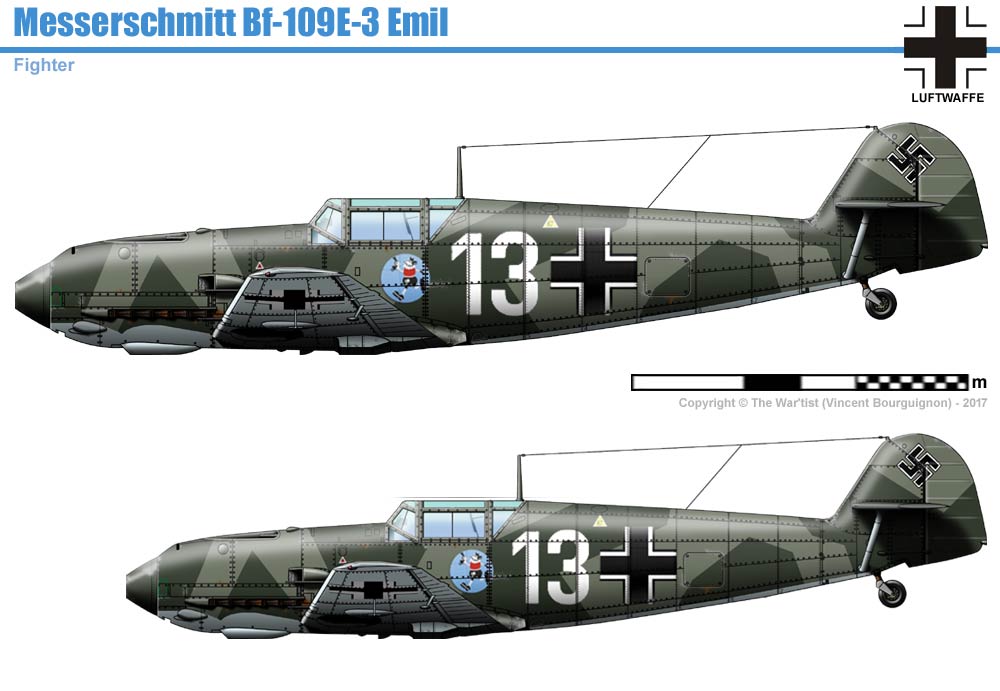

1./JG 51 - Germany, September 1939.

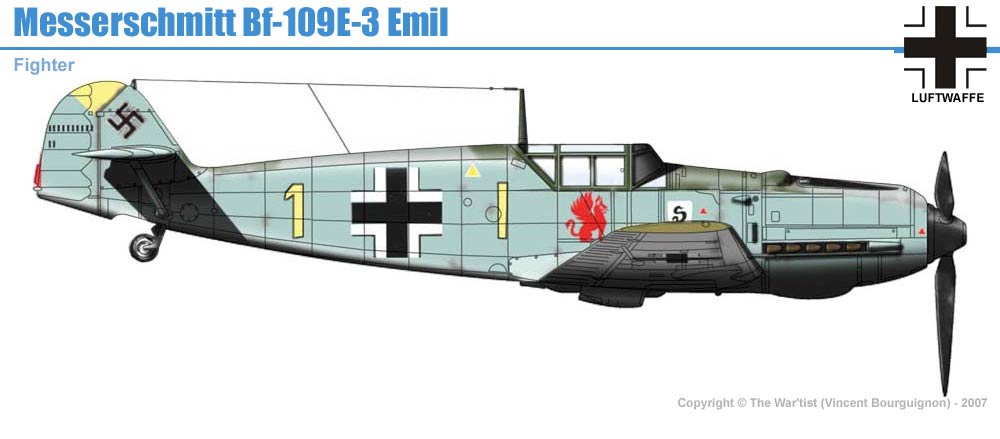

Stab III/JG 27 - Gela, Sicily, December (February?) 1941.

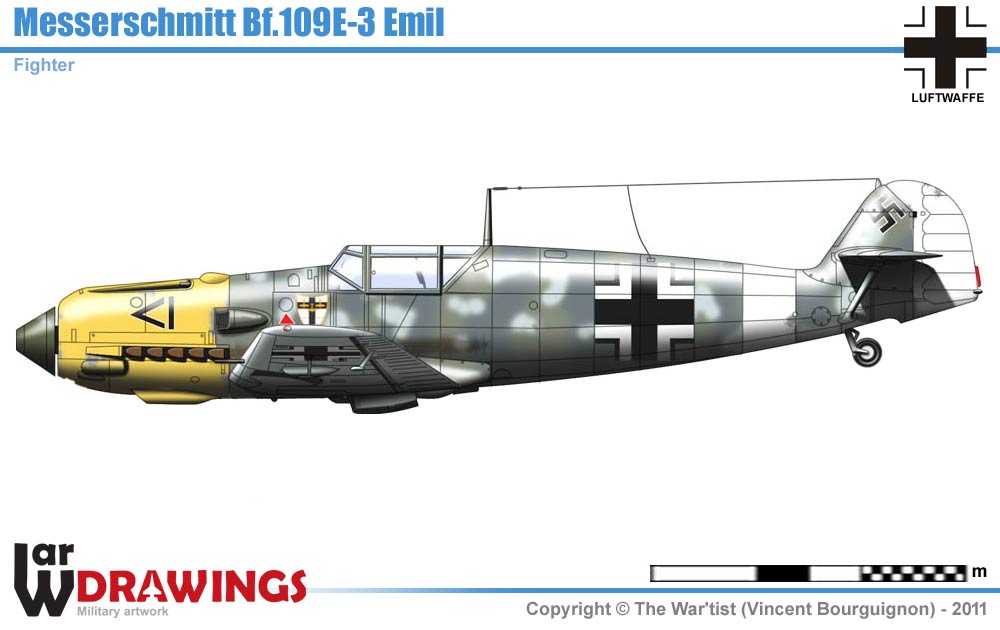

9./JG26 - Gerhard Schopfel - circa 1940.



Me Bf109E-3 Specifications

Type: Fighter
Crew: 1

Daimler Benz DB 601Aa 12-cylinder, inverted Vee, liquid-cooled 1175 hp | Pistons
Dimensions/Masses
Length: 8.64m | Width: 9.87m | Height: 2.50m
Weight: 1900 kg | Max. Combat Weight: 2665 kg
Performances
Max. Speed: 560 km/h | Ceiling: 11000 m | Range: 660 km
Armament

MG: 3 x 20mm MG FF guns & 2 x 7.92mm MG-17
Bombs: -



Data





Bf.109E-3 Emil 1/72
