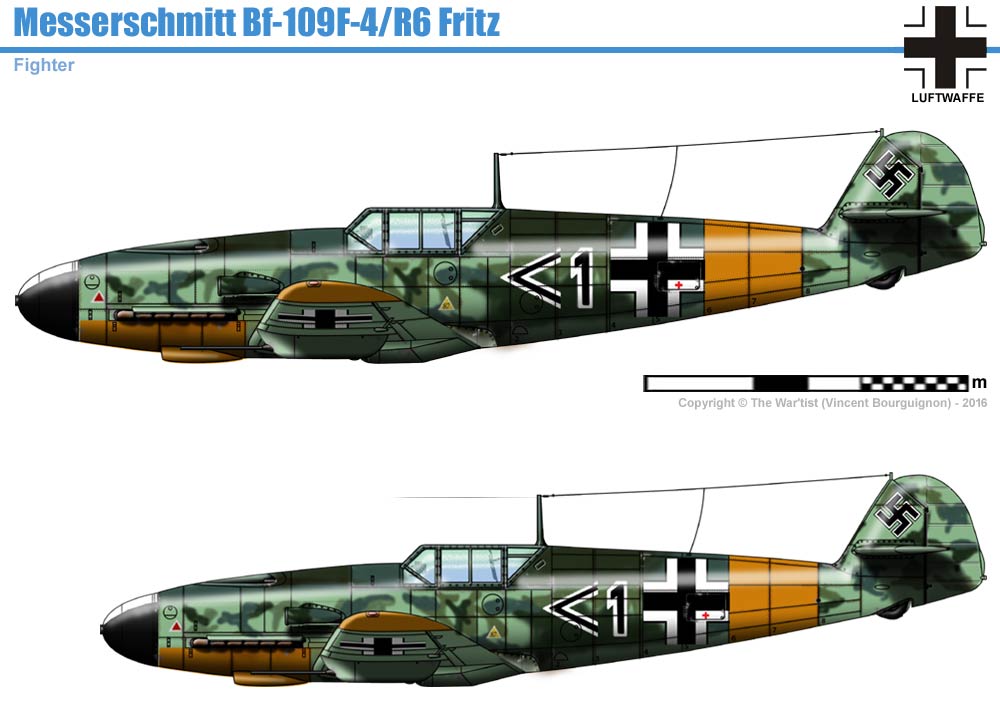

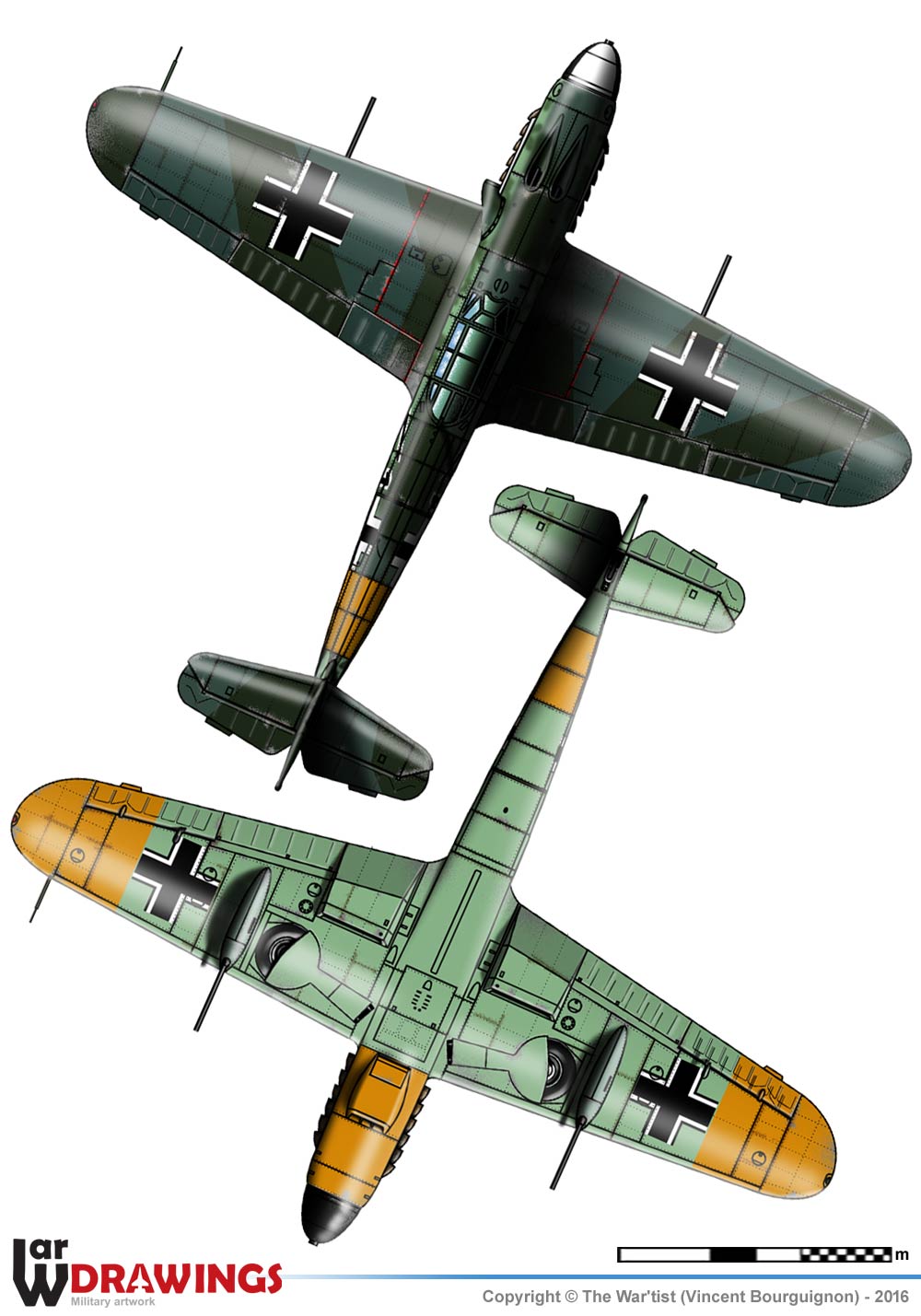

I./JG52 - Cuban area, June 1942

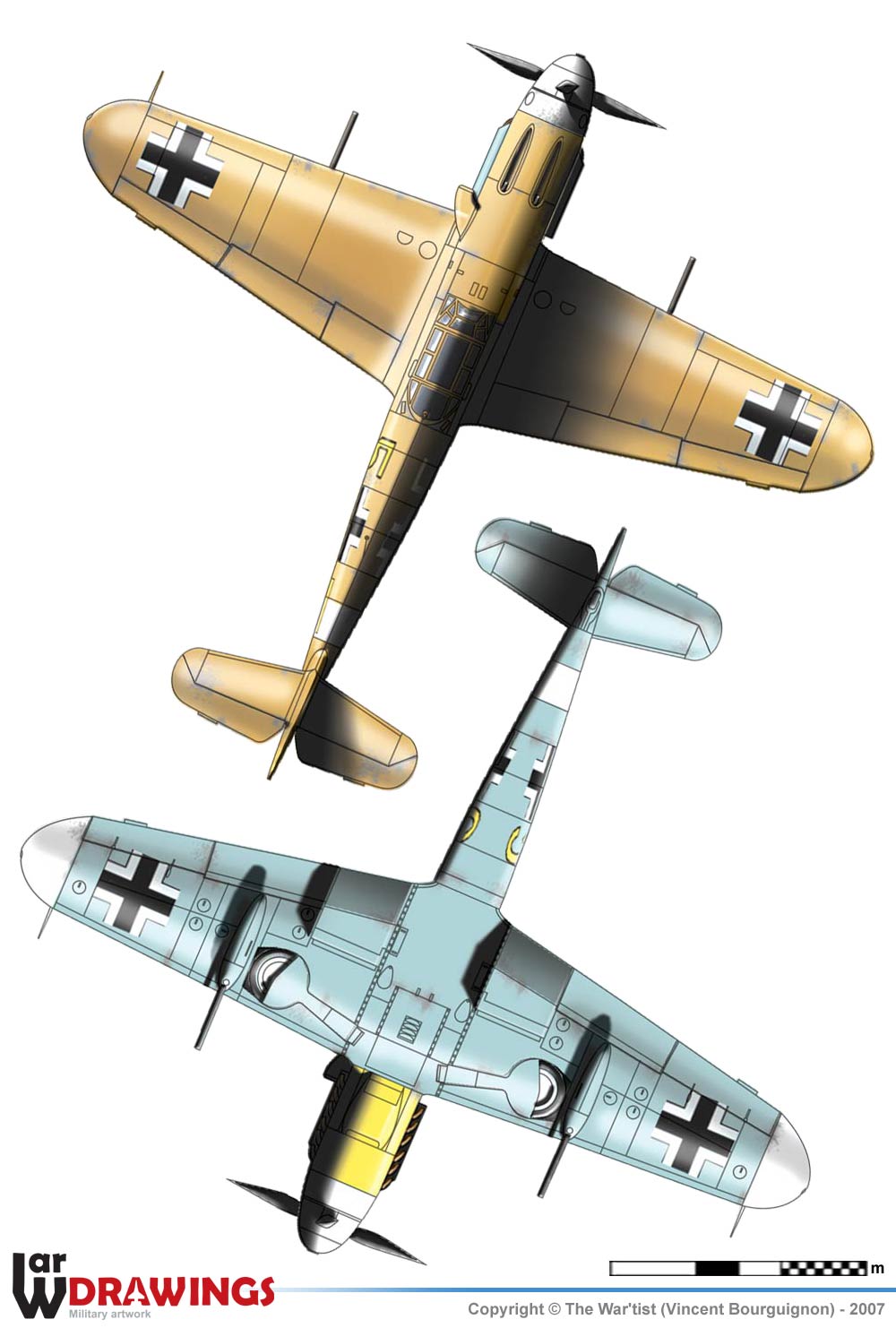

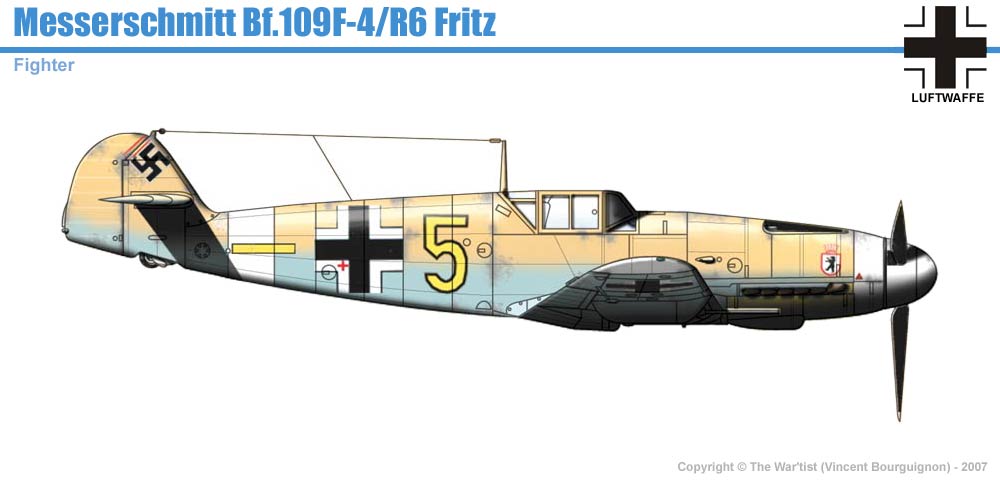

II./JG27 - Tunisia, 1943.





Me Bf109F-4/R-6 Specifications

Type: Fighter
Crew: 1

Daimler Benz DB601E-1 12-cylinder, inverted Vee, liquid-cooled 1350hp | Pistons
Dimensions/Masses
Length: 8.90 m | Width: 9.92 m | Height: 2.60 m
Weight: 2590 kg | Max. Combat Weight: 3117 kg
Performances
Max. Speed: 624 km/h | Ceiling: 11000 m | Range: 850 km
Armament

MG: 1-3 x 20mm MG 151/20 & 2 x 7.92mm MG-17
Bombs: ?



Data
